When working with Streamscript, users have access to three types of output:
We'll modify the script below to show an example of each type.
An error in your script (that is not wrapped with try ... catch) will halt the flow. Its error details will be written to the panel on the right. The line number related to the cause and some context about the error is always provided.
In the scenario below, the script calls out to an exchange rate service.
# Streamscript $http = GET 'api.exchangerate.host/EUR' # fails without remote site setting $result = JSON-Decode $http.body return $result.rates.USD
No remote site setting for
api.exchangerate.host has been set. So the flow halts and details of the error are shown like this:

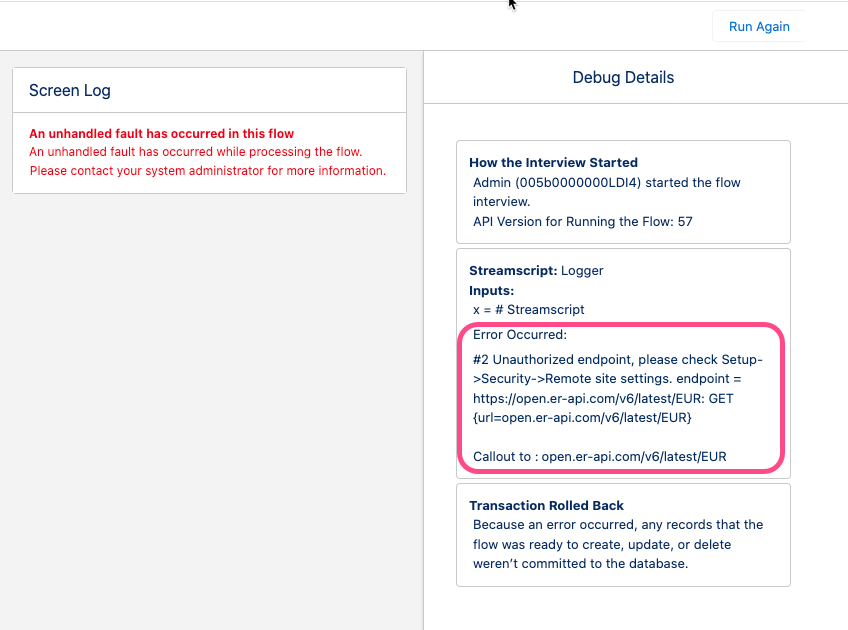

Screen flow errors

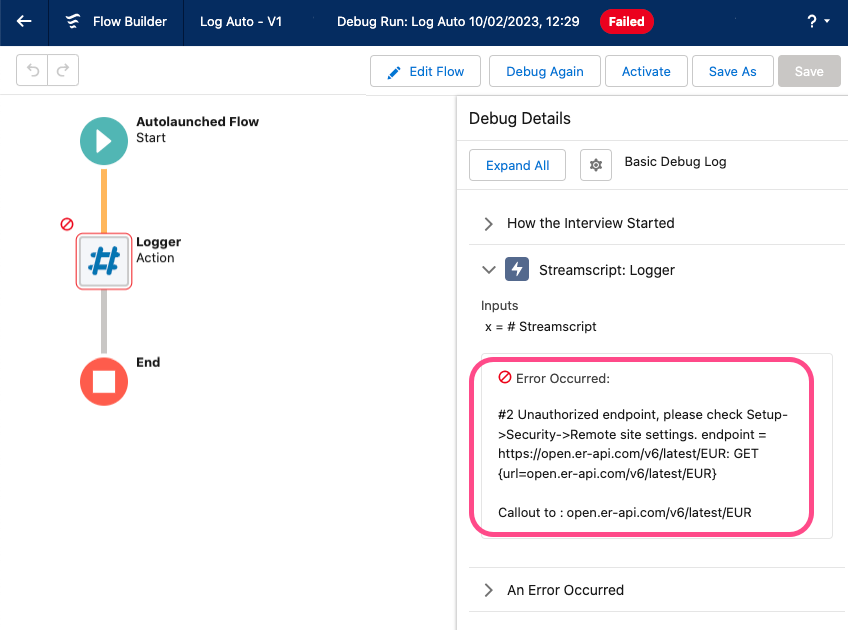

Other flow errors
|In a screen flow, the error will be written to the right of the Debug Details.||In an autolaunched flow, the error will be written to the right of the Flow Builder.|
Users can inspect specific values mid script to aid with development. Use the Log command as highlighted below:
# Streamscript $Http = GET 'api.exchangerate.host/EUR' Log `Callout result: $Http.status` $result = JSON-Decode $Http.body return $result.rates.USD

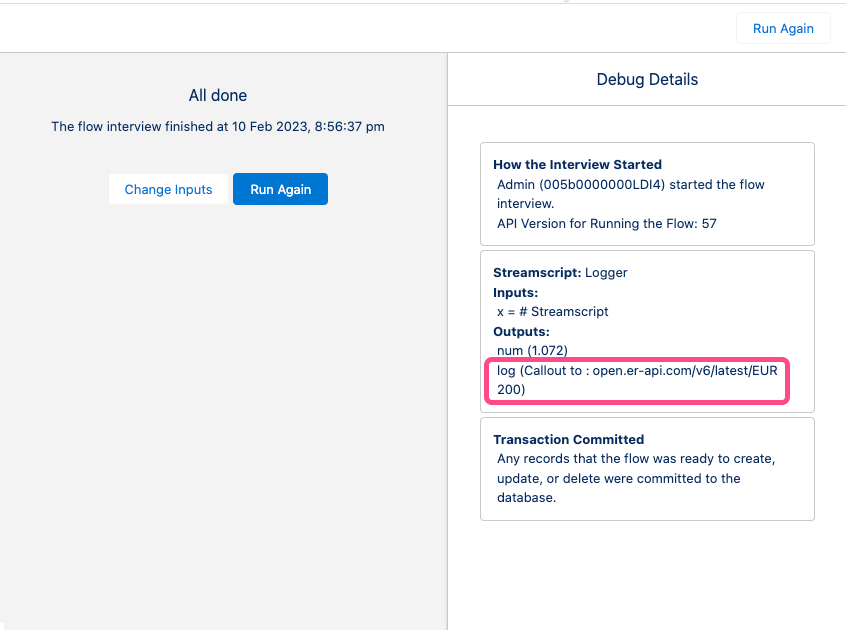

Screen flow logs

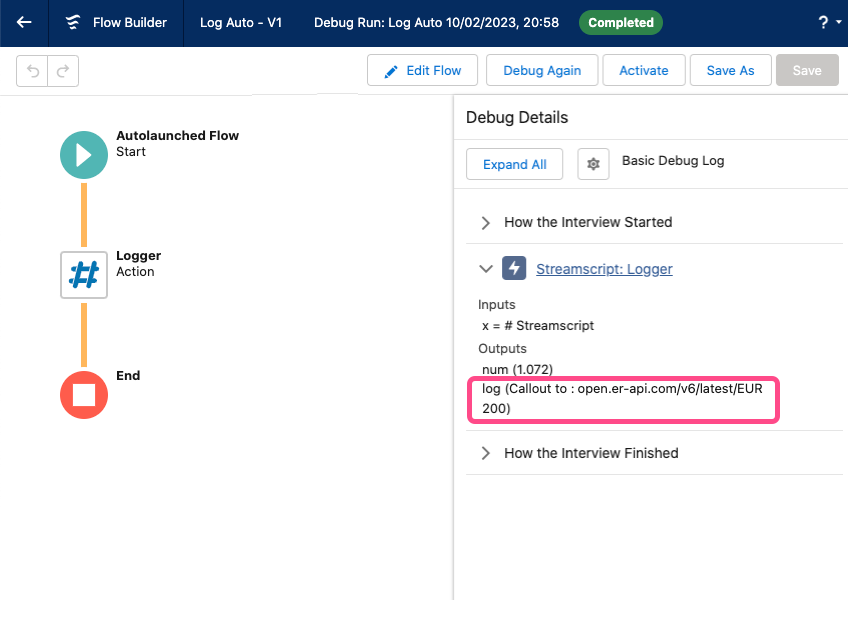

Other flow logs
Note that everything in the log output is also available to the next step.
When a script returns any value, it appears in the Debug Details. For example, this exchange rate logic may be modified to return the entire $result instead of just the USD rate:
# Streamscript $http = GET 'api.exchangerate.host/EUR' $result = JSON-Decode $http.body return $result
No need to specify the returned output type - Streamscript will automatically assign a number to the
num output variable, a record to the
record variable and so on.

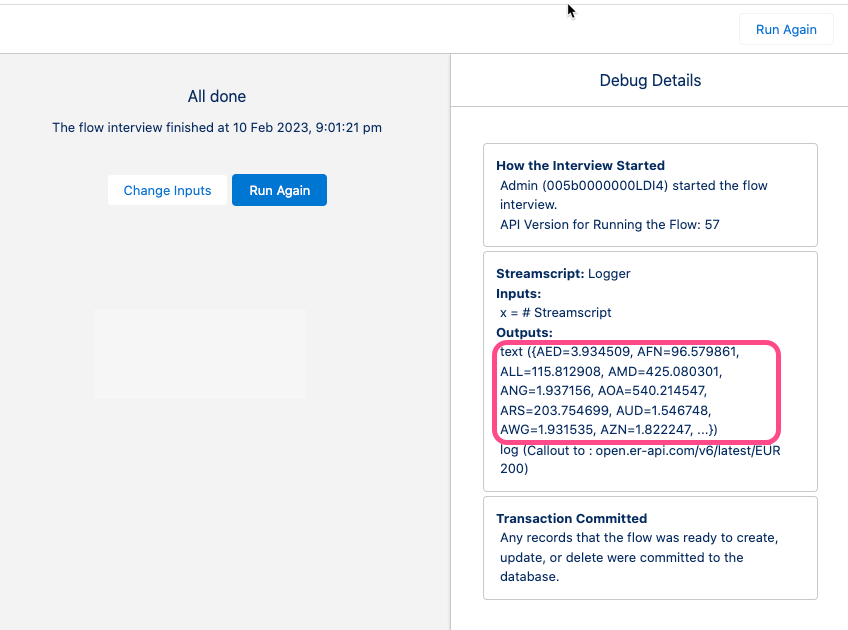

Screen flow returns
Other flow returns
In summary: users have access to logs, errors, and returns in the Flow Builder. When running a script in flow, any error and its line number can be seen in the Debug Details panel.
