Salesforce/Box V2 Webhooks

Following V1 Webhooks, this is an enhanced Salesforce/Box integration using V2 Webhooks. In this recipe, we go beyond the upload notification, and use Box OAuth to sync entire files from Box directly into Salesforce using the ContentVersion object. We'll cover the following steps:

Step 1 - Create a webhook receiver in Salesforce
Step 2 - Create a V2 Webhooks app in Box.com
Step 3 - Upload files to test the Box integration

Step 1 - Create a webhook receiver in Salesforce

Log into Salesforce and prepare the Flow to handle the webhook.

Follow the site setup video if you don't already have a Site configured.
Go to the Streams app > Integrations tab > click New Webhook Flow
Add a Streamscript action, with Name: Streamscript
Paste in below script then click Done

# Streamscript

# Read the Box webhook
$enterpriseId = 'YOUR-ENTERPRISE-ID-HERE'
$request = Json-Decode $Webhook.request
$type       = $request.trigger          # "FILE.UPLOADED"
$fileName   = $request.source.name      # "Proposal-01.png"
$fileId     = $request.source.id        # "1234567890"
$name       = $request.created_by.name  # "Neil Reid"

# Obtain bearer token
$url = 'callout:https_api_box_com/oauth2/token'
$headers = {}
$headers.Content-Type = 'application/x-www-form-urlencoded'
$payload = ''
$payload += '&client_id={!$Credential.Username}'
$payload += '&client_secret={!$Credential.Password}'
$payload += '&grant_type=client_credentials'
$payload += '&box_subject_type=enterprise'
$payload += '&box_subject_id=' + $enterpriseId
$response = Http-Post $url $headers $payload
$result = Json-Decode $response.body
$accessToken = $result.access_token

# Obtain download url
$url = `https://api.box.com/2.0/files/$fileId/content`
$headers   = {authorization: `Bearer $accessToken`}
$response  = Http-Get $url $headers
$fileUrl   = $response.headers.location

# Retrieve b64 data
$base64  = Http-Get $fileUrl -base64

# Prepare new record
$ContentVersion = New-ContentVersion {
    Title = $fileName
    PathOnClient = $fileName
    VersionData = $base64.body
}

# Return as SObject
return $ContentVersion

Add a flow element to save the Content Version.

Add a Create Records element, with Name: Save Content Version
Set Create a Record from These Values to the Streamscript > record output

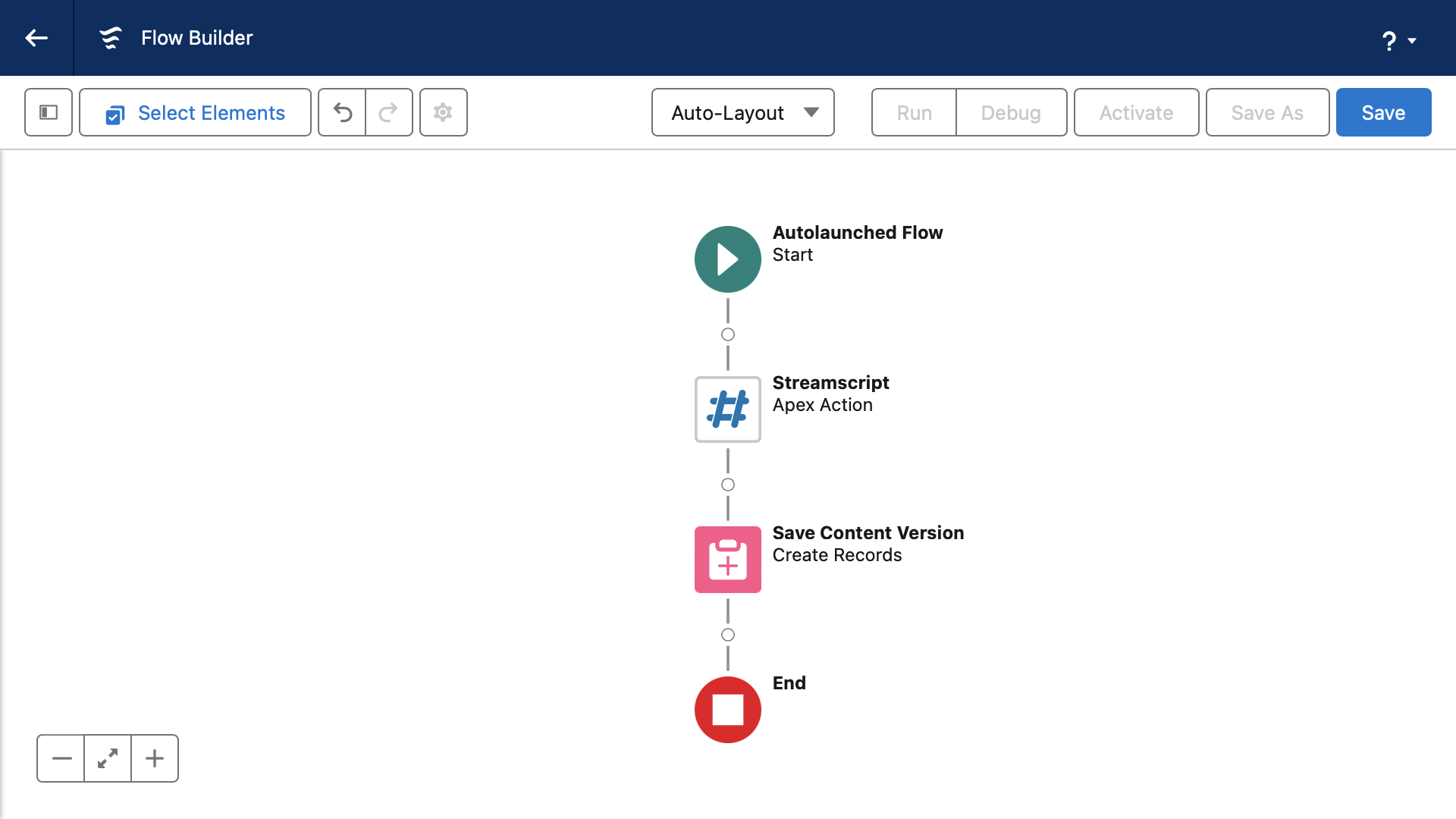

Click Done. Here is how the flow looks.

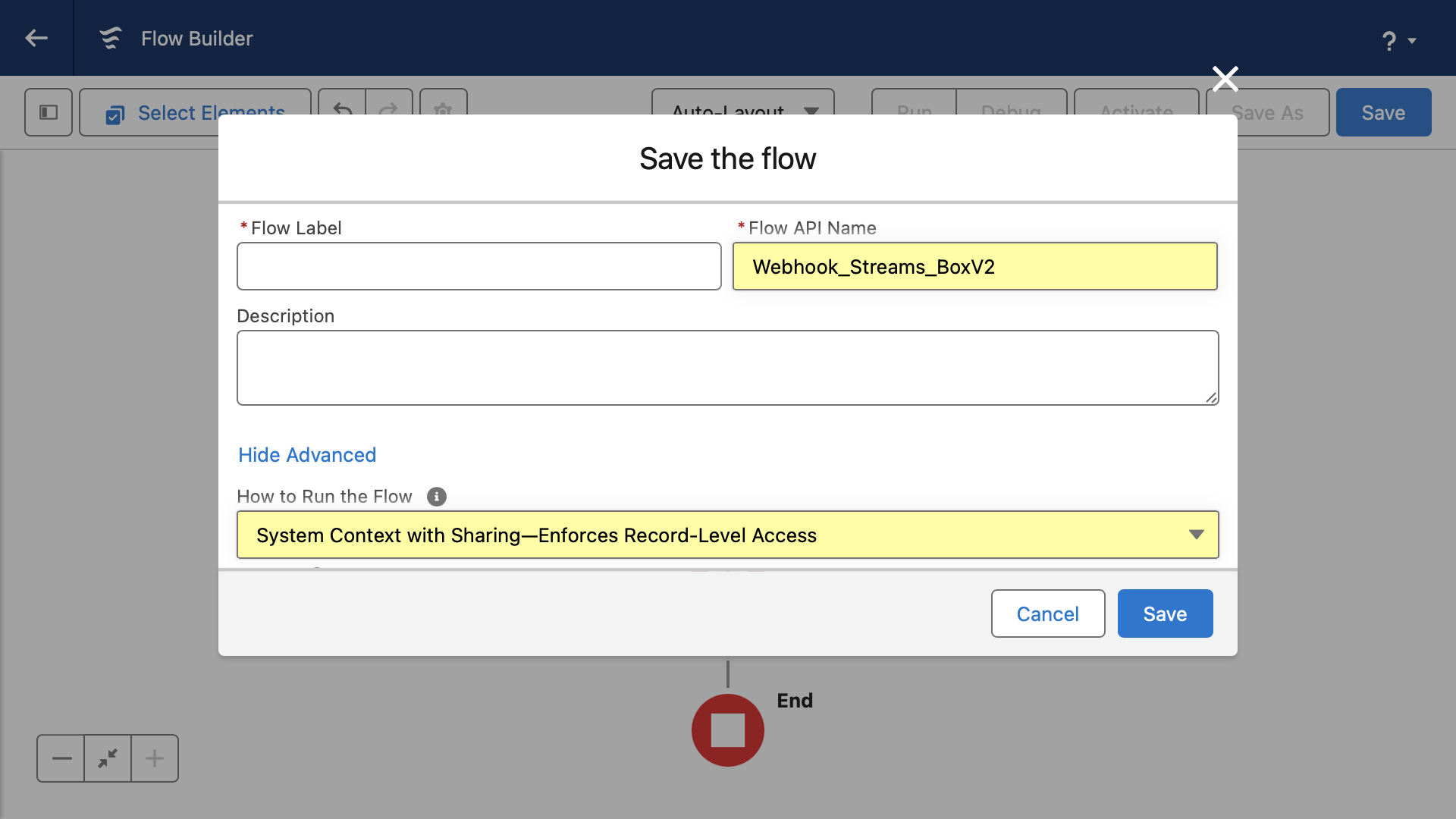

Save the Flow:

Use this specific API Name: Webhook_Streams_BoxV2
Show Advanced > How to Run the Flow: choose System Context With Sharing
(This flow property ensures the Site Guest User can insert the task record)

Notice how the API Name of the Webhook Flow consists of three parts. This is a
convention and it always has the format: Webhook _ Site Name _ URL Suffix

Click Activate

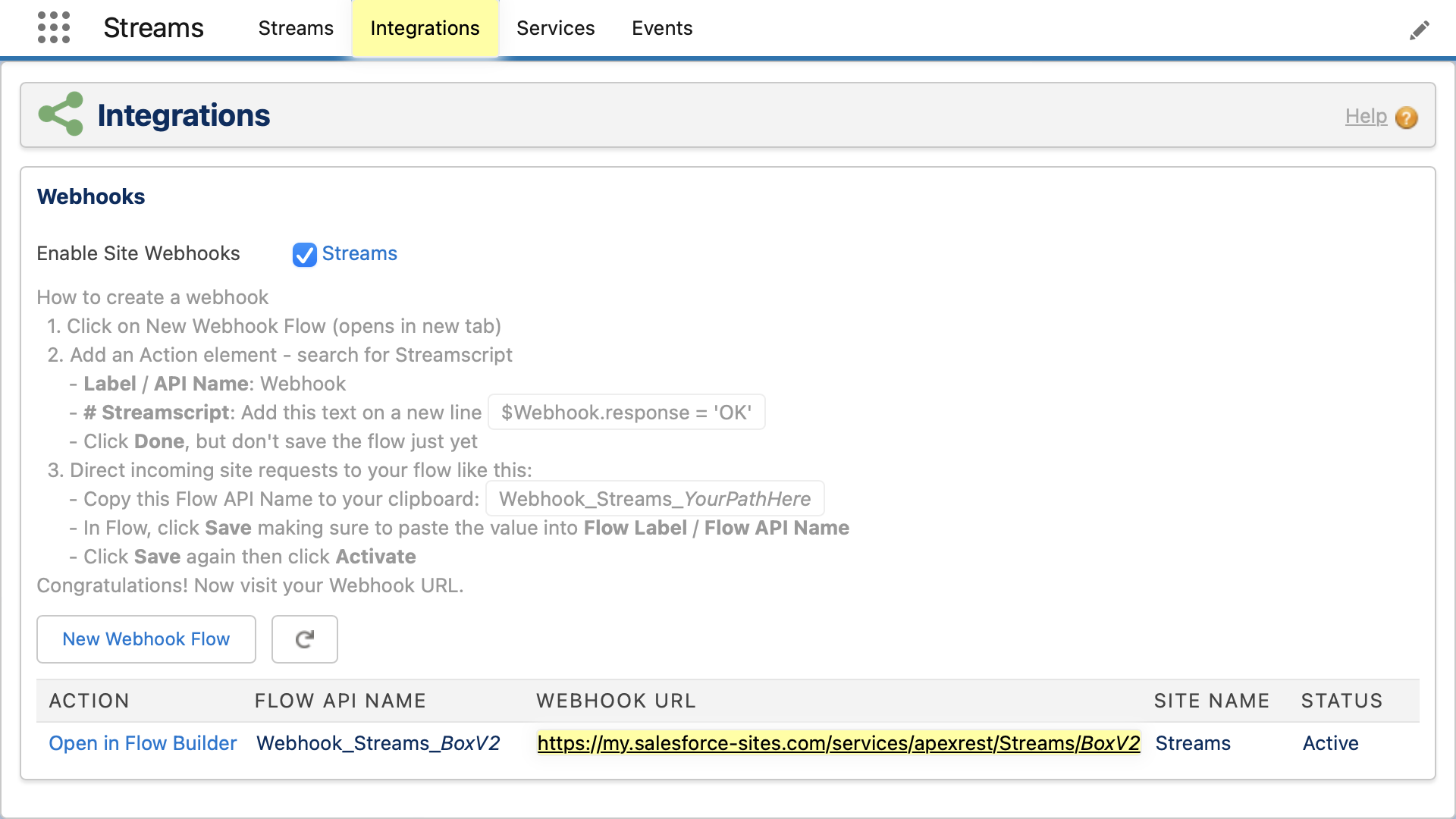

Go to the Streams app > Integrations tab
Find the Webhook URL and then Copy it to the clipboard. It's ready for Box.

Named Credential

Create a Named Credential that provides your API authorization bearer token:

Navigate to Named Credentials > New ▽ > New Named Credential
Label: https_api_box_com
Name: https_api_box_com
URL: https://api.box.com
Identity Type: Named Principal
Auth Protocol: Password Authentication
Generate Authorization Header: [_] Uncheck
Allow Merge Fields in HTTP Header: [X] Check
Allow Merge Fields in HTTP Body: [X] Check
(If you use External Credentials, set the Managed Package Access: Streams)

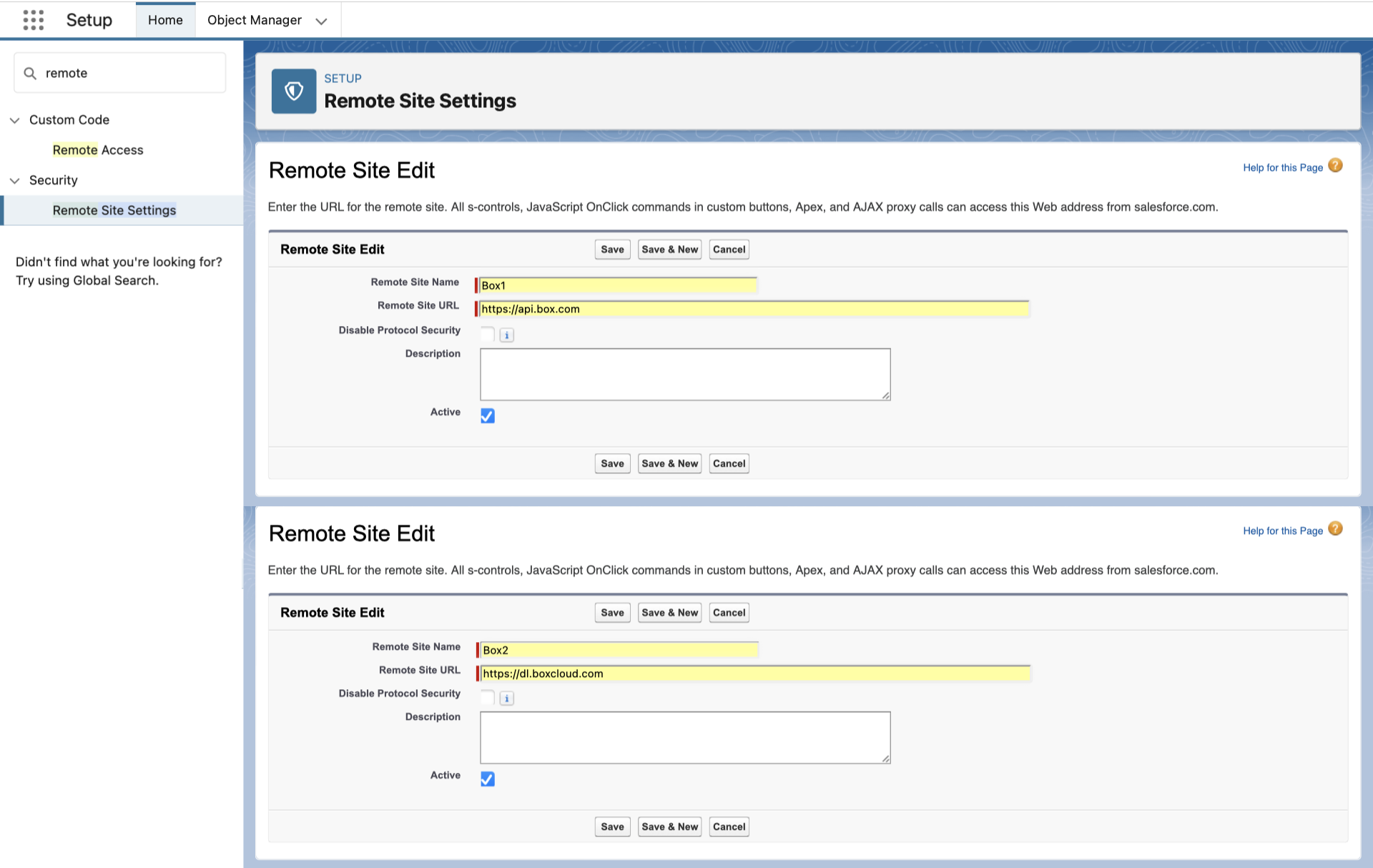

Remote Site Settings x 2

Create the Remote Site settings, one for the OAuth, another for file downloads:

Go to Setup > Remote Sites > New Remote Site
Active: True
First Remote Site URL: https://api.box.com
Second Remote Site URL: https://dl.boxcloud.com

Step 2 - Create a V2 Webhooks app in Box.com

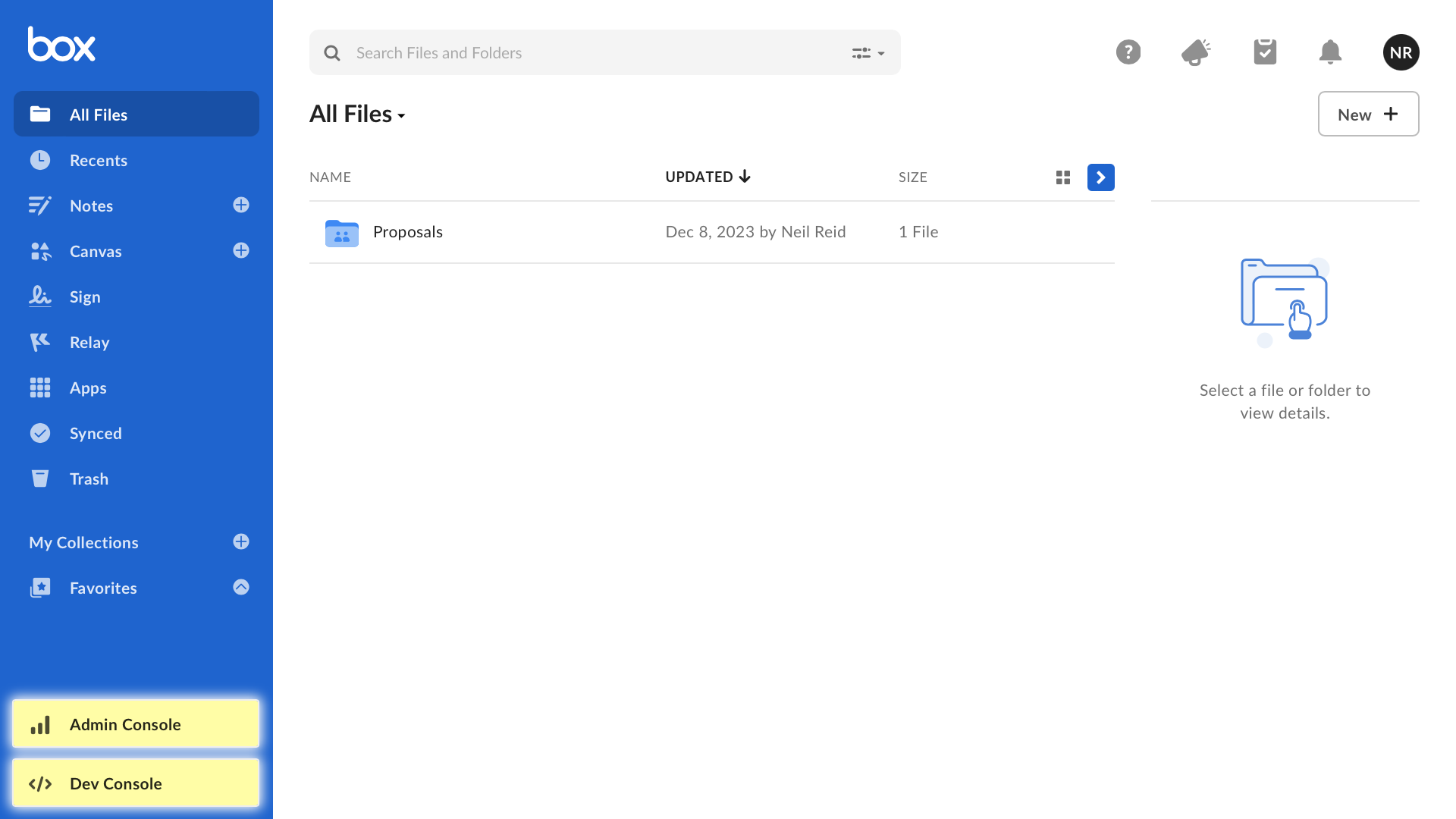

Box has three setup areas. The links below can verify if you are on the correct area:

Box App (blue) - https://app.box.com
Admin Console (black) - https://app.box.com/master
Developer Console (black) - https://app.box.com/developers/console

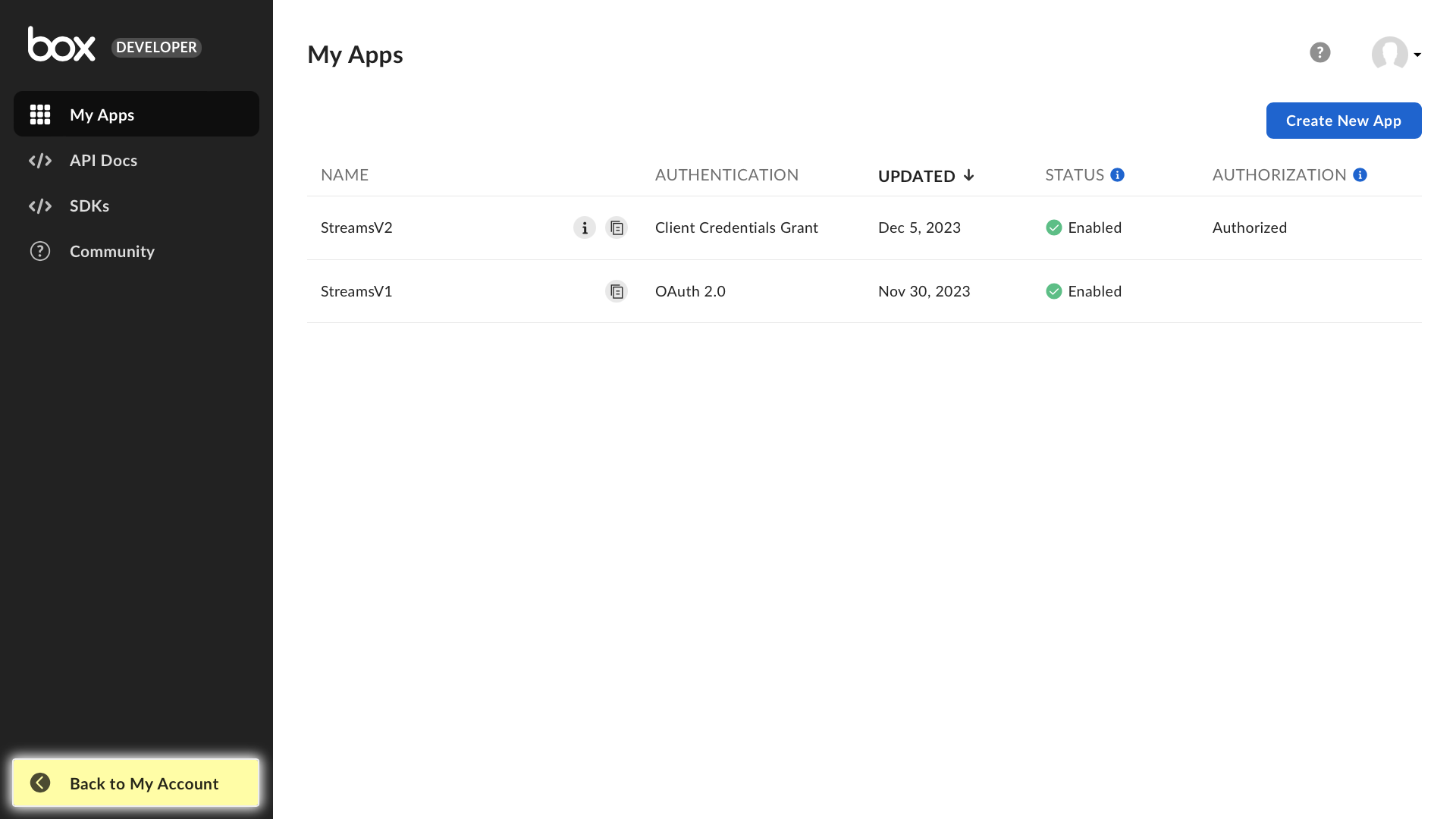

Log into Box > Dev Console > My Apps:

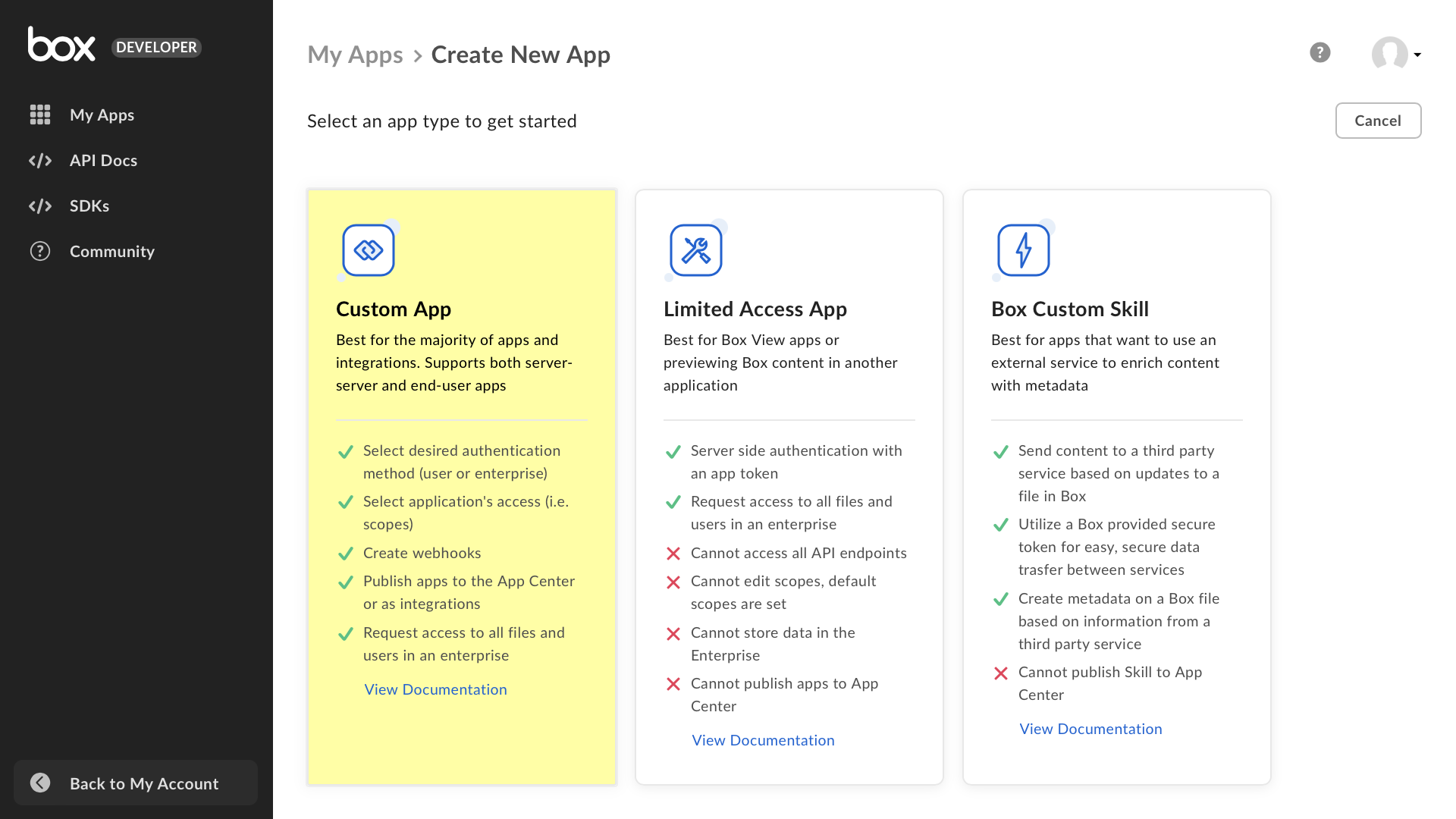

Click Create New App
App Type: Custom App

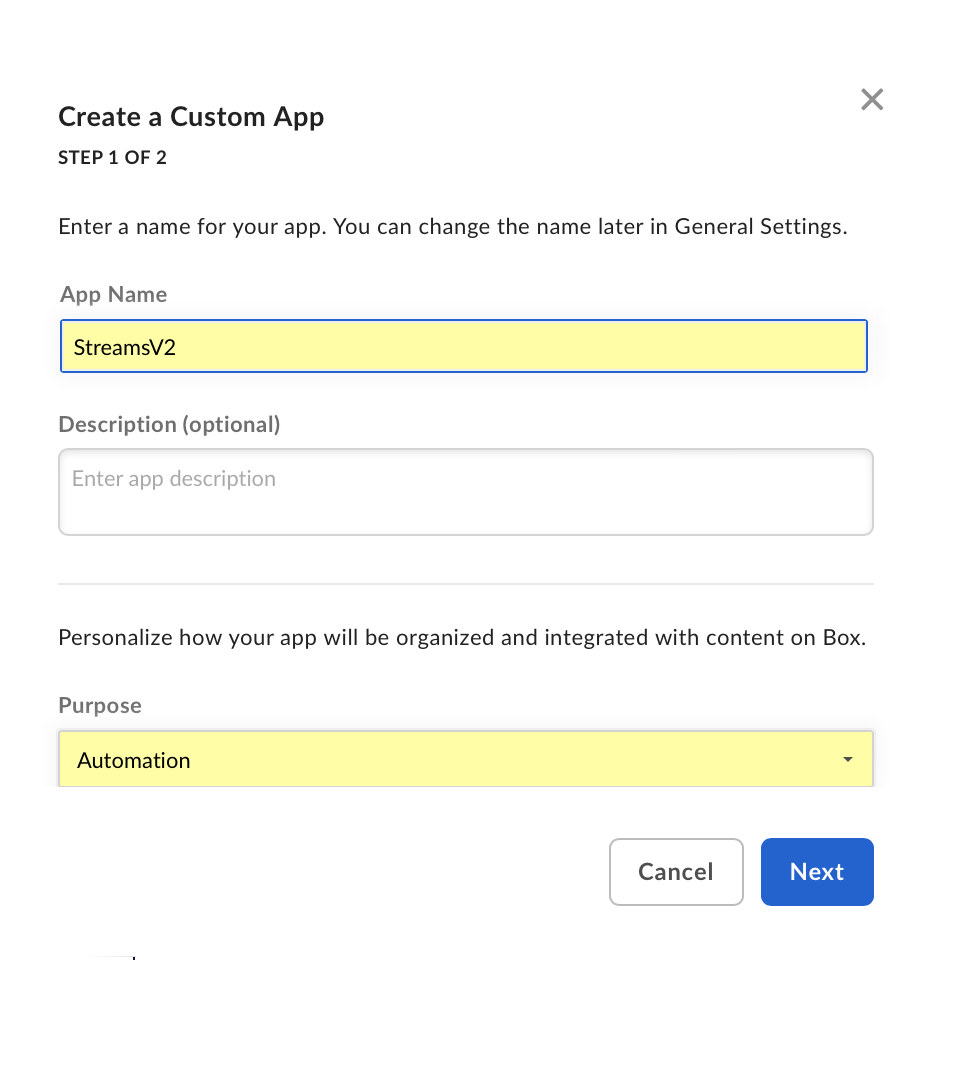

Carefully choose the app settings:

App Name: StreamsV2
Purpose: Automation

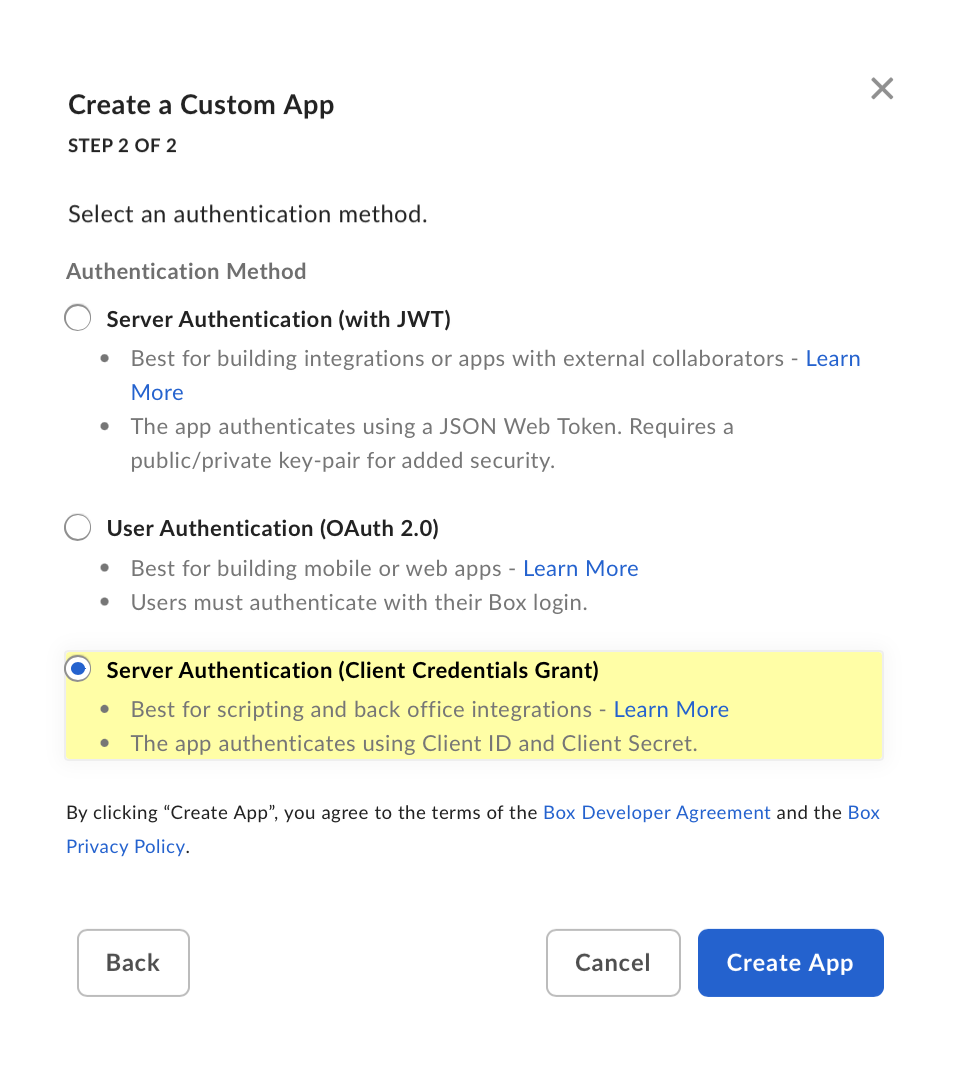

Authentication Method: Server Authentication (Client Credentials Grant) - this setting is a simplified server-to-server flow. It doesn't require users to exchange tokens in a browser.

Submit App for Authorization

In the role of Developer, make the app privately available to the role of Administrator.

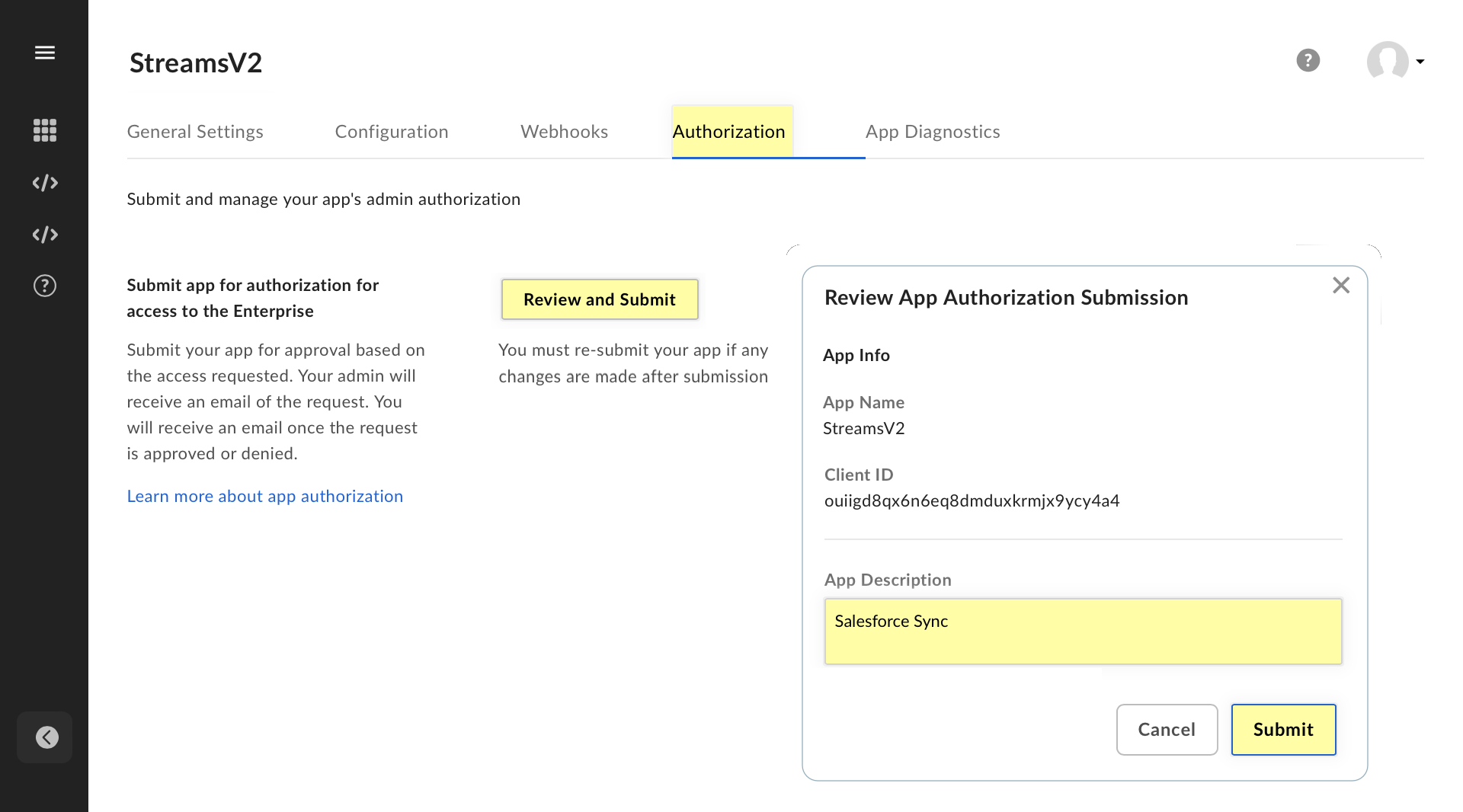

Go to the Authorization tab
Click Review and Submit
Provide an App Description, then click Submit
Note the status Pending Authorization

Approve the App

In the role of Administrator, approve the app so that it can be used by box users in the enterprise. Log into your Box workspace. From the left menu bar, select the Admin Console:

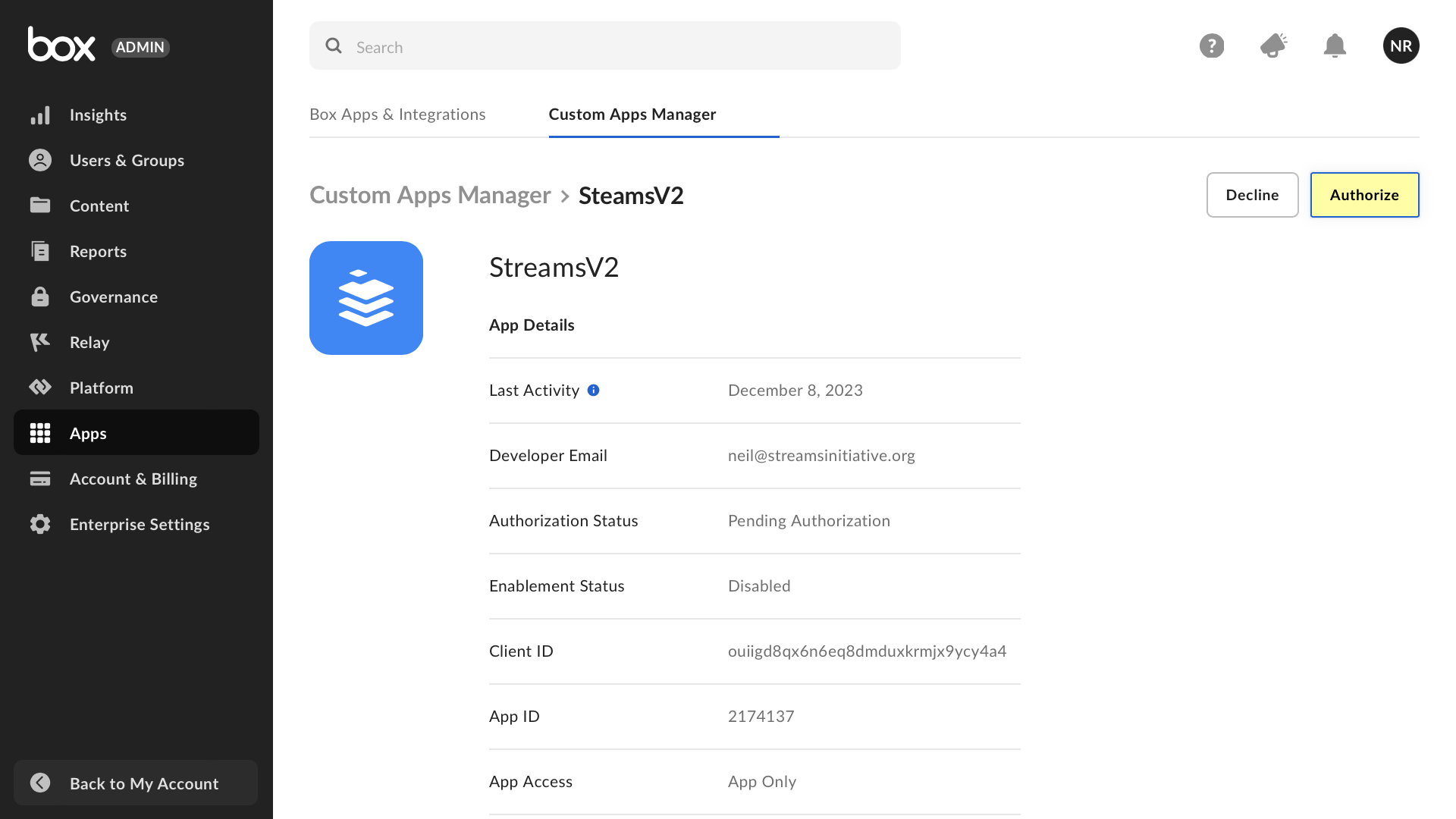

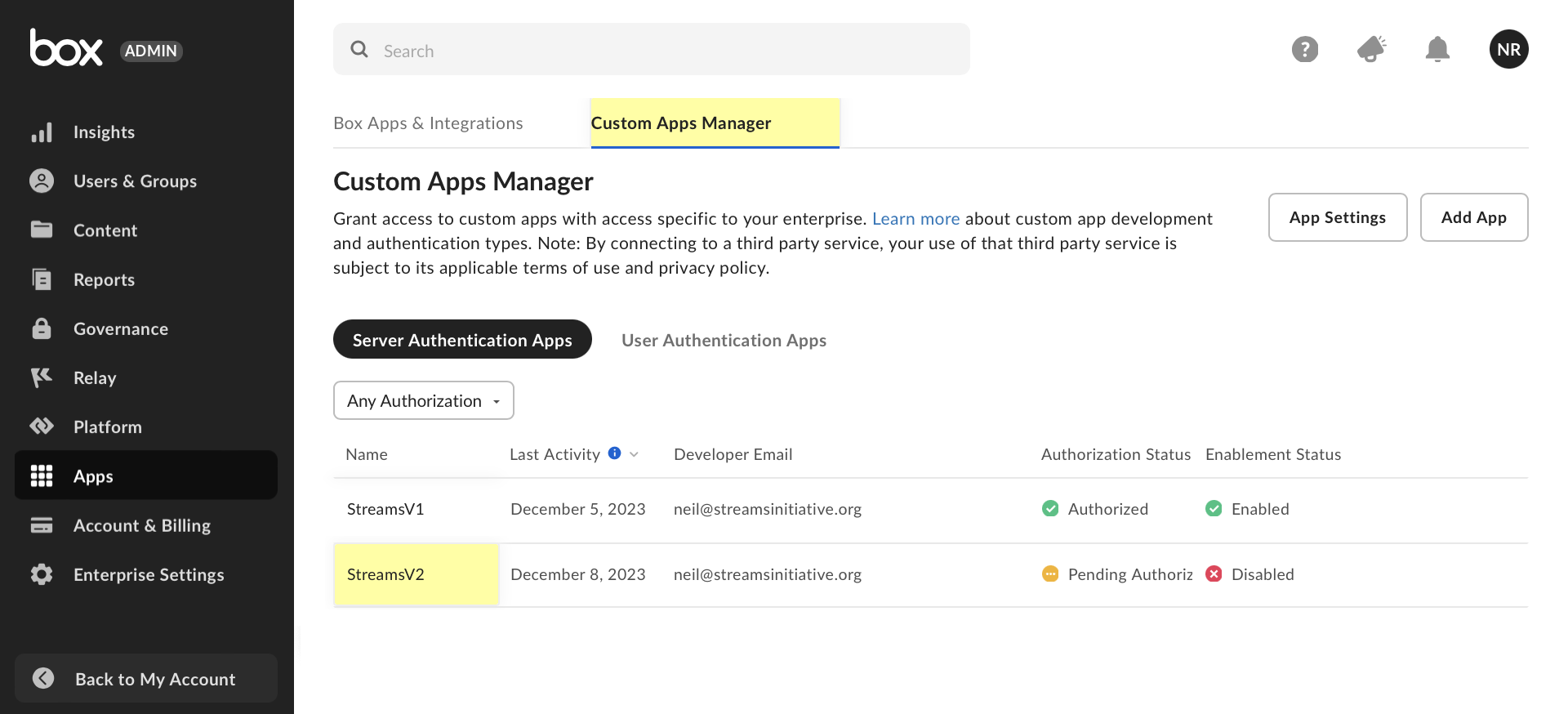

Click Apps, then click Custom Apps Manager
Click StreamsV2 from the list - copy down the Pending Authorization status

Click Authorize

Grant Access to your Proposals folder

Your app's service account must have specific access to your enterprise artefacts (files, folders, etc). For this tutorial, grant the app full access to the 'Proposals' folder.

Navigate to your App (the black area)

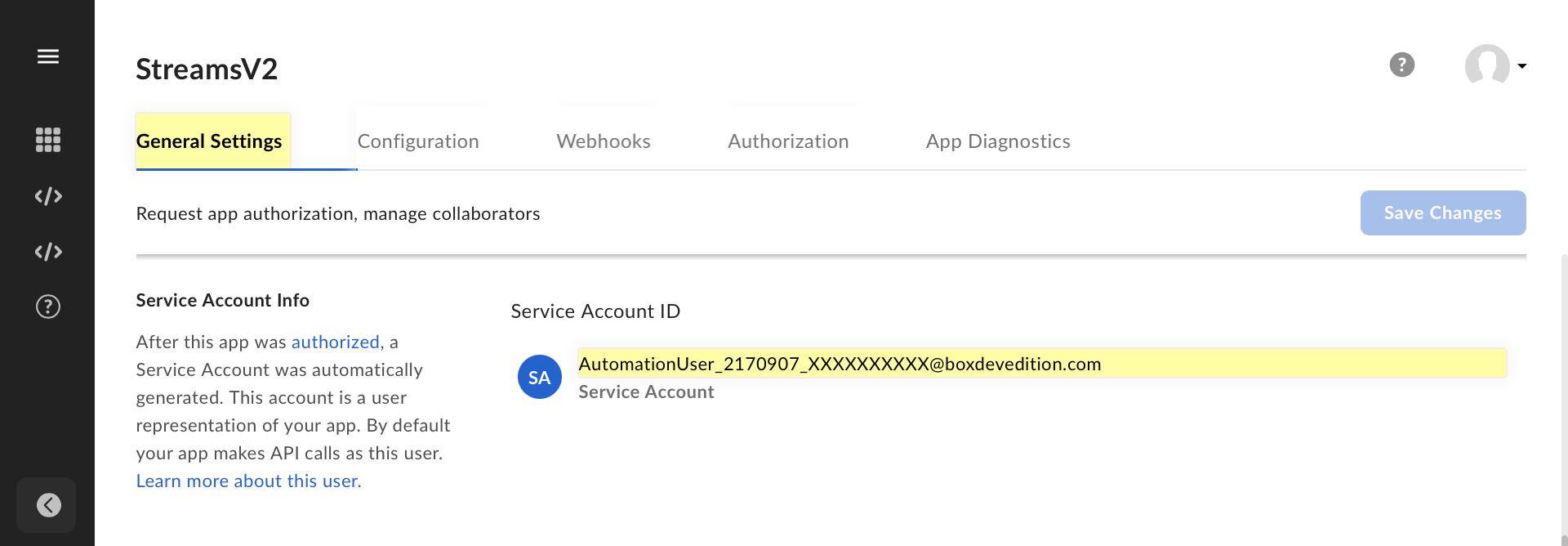

Go to the General Settings tab
Under the section Service Account ID, copy the Automation User email address

Return back to your Box workspace (the blue area)

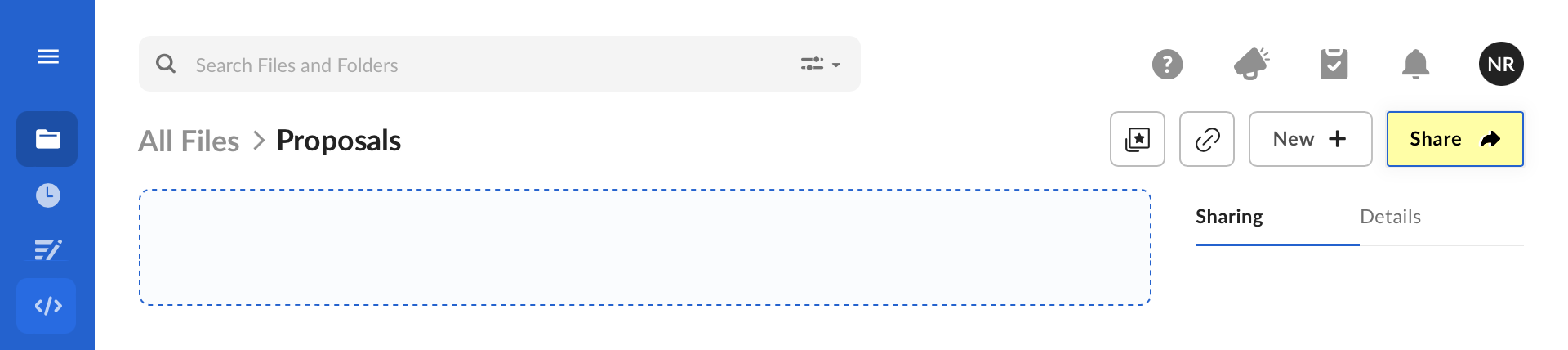

Navigate to the Proposals folder
Click Share in the top right

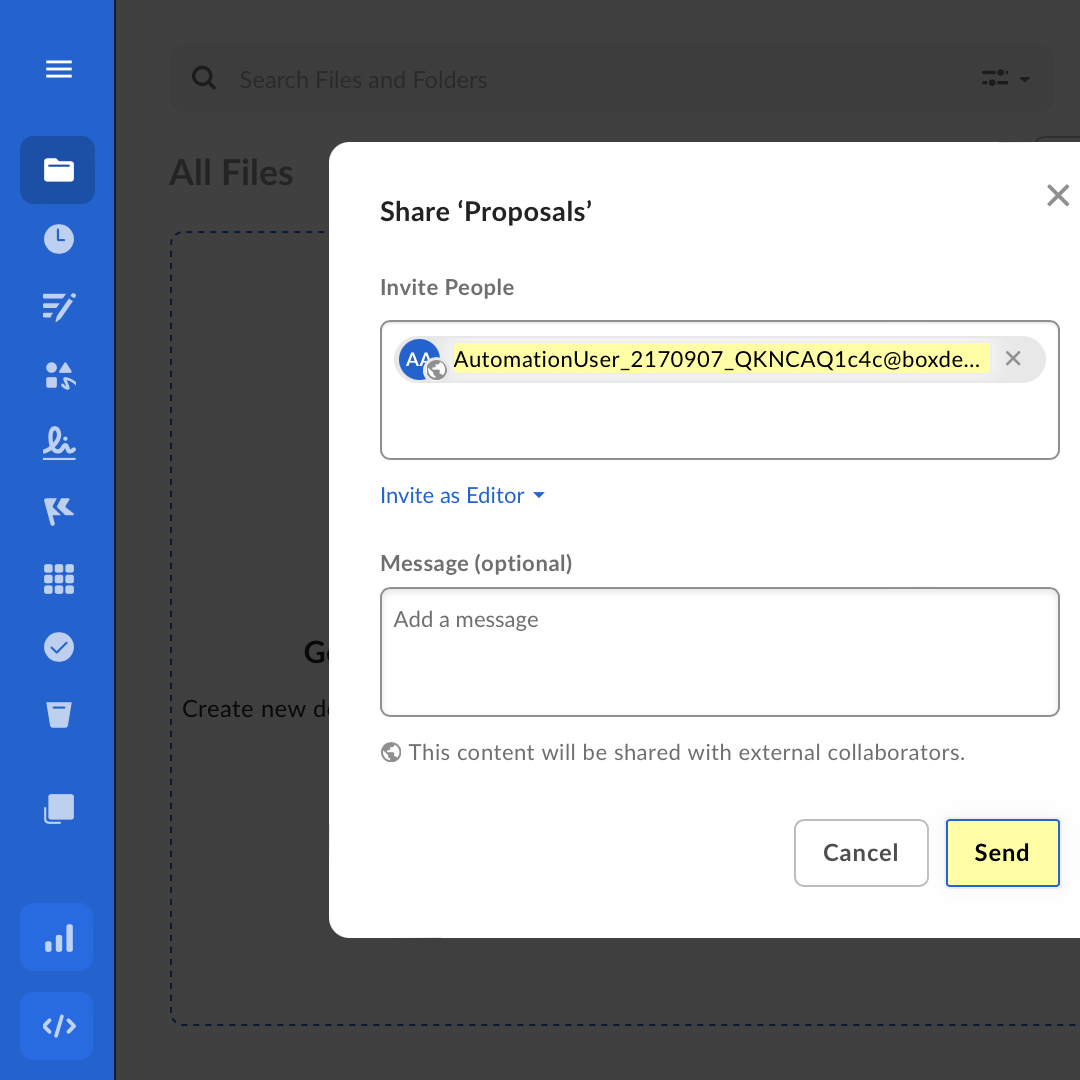

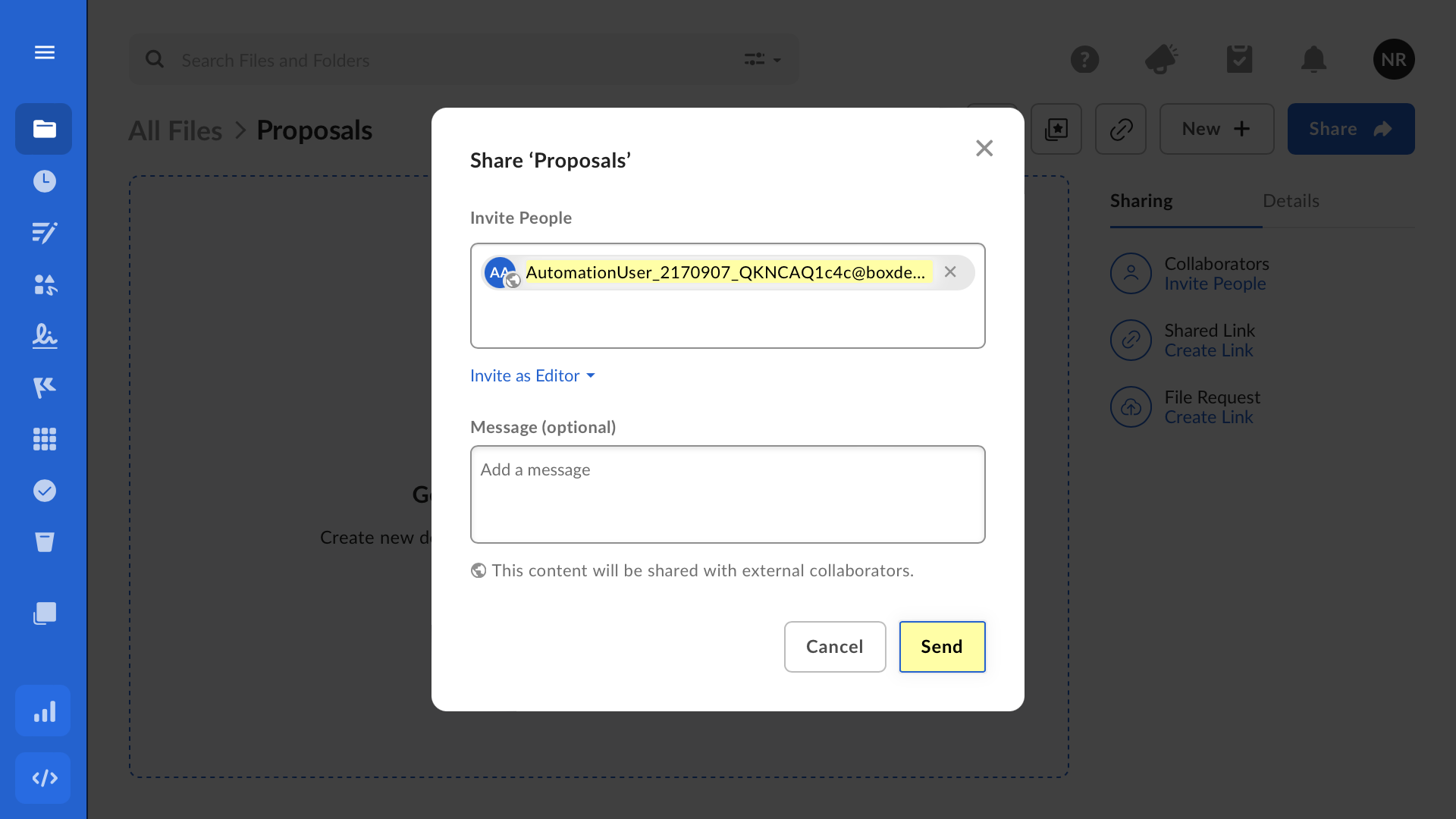

Under Invite People in the popup, paste in the Service Account email address
Click Send to grant visibility to the App

Configure a FILE.UPLOADED listener

Your app will notify Salesforce about every file uploaded to the Proposals folder. Return to the Developer Console to configure the Box webhook.

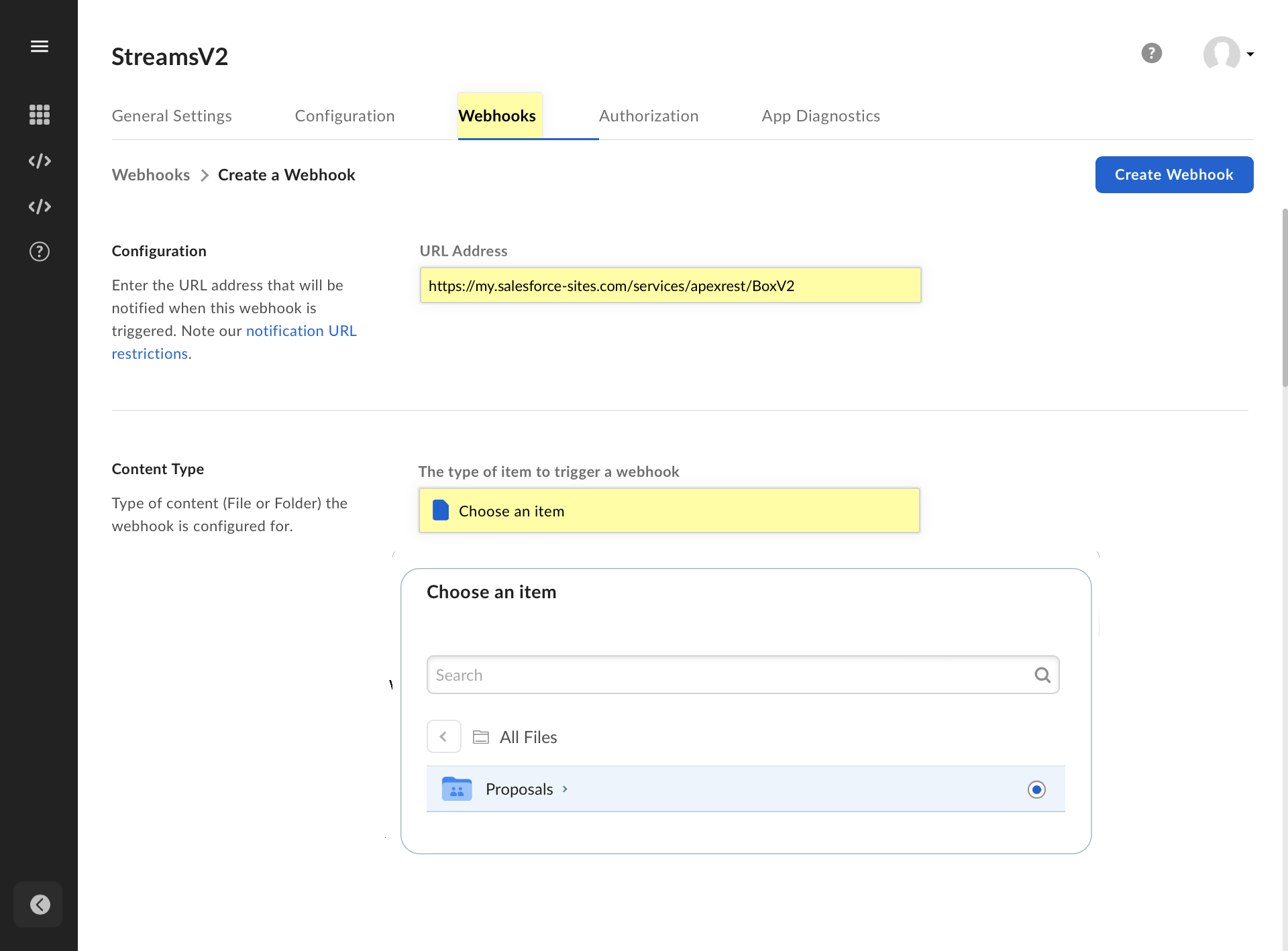

In your app, go to the Webhooks tab
From the Create Webhook dropdown, select V2
URL Address: Paste the Webhook URL from the clipboard in Step 1
Content Type: Click Choose an Item

Select the 'Proposals' folder by clicking the radio button
Click Choose

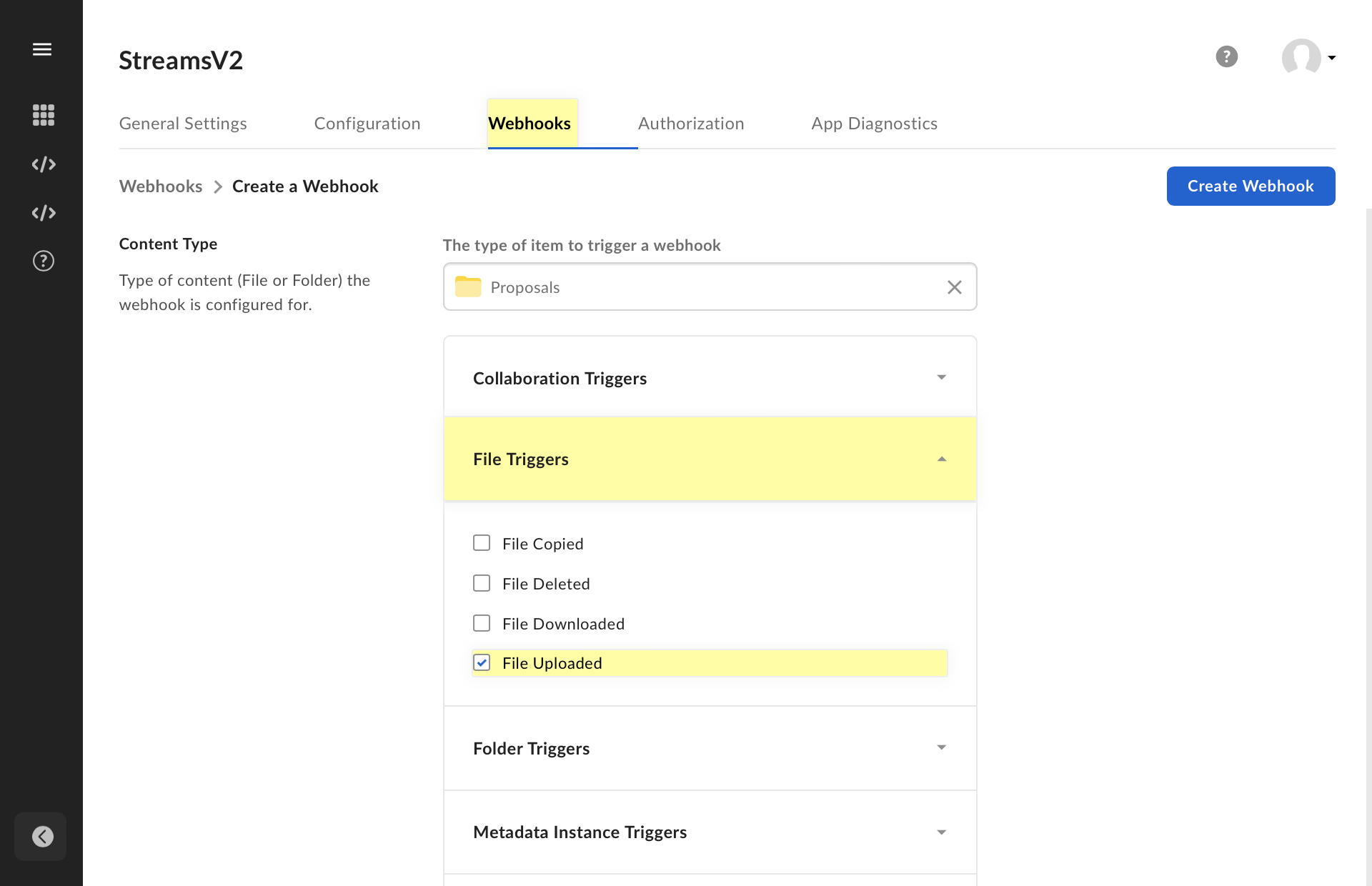

Under File Triggers, select the File Uploaded event
Click the Create Webhook button to finalise the configuration.

Step 3 - Upload files to test the Box integration

Before testing, enter the three parts of your Box credential in Salesforce.

In Box, open the Dev Console and navigate to your app:

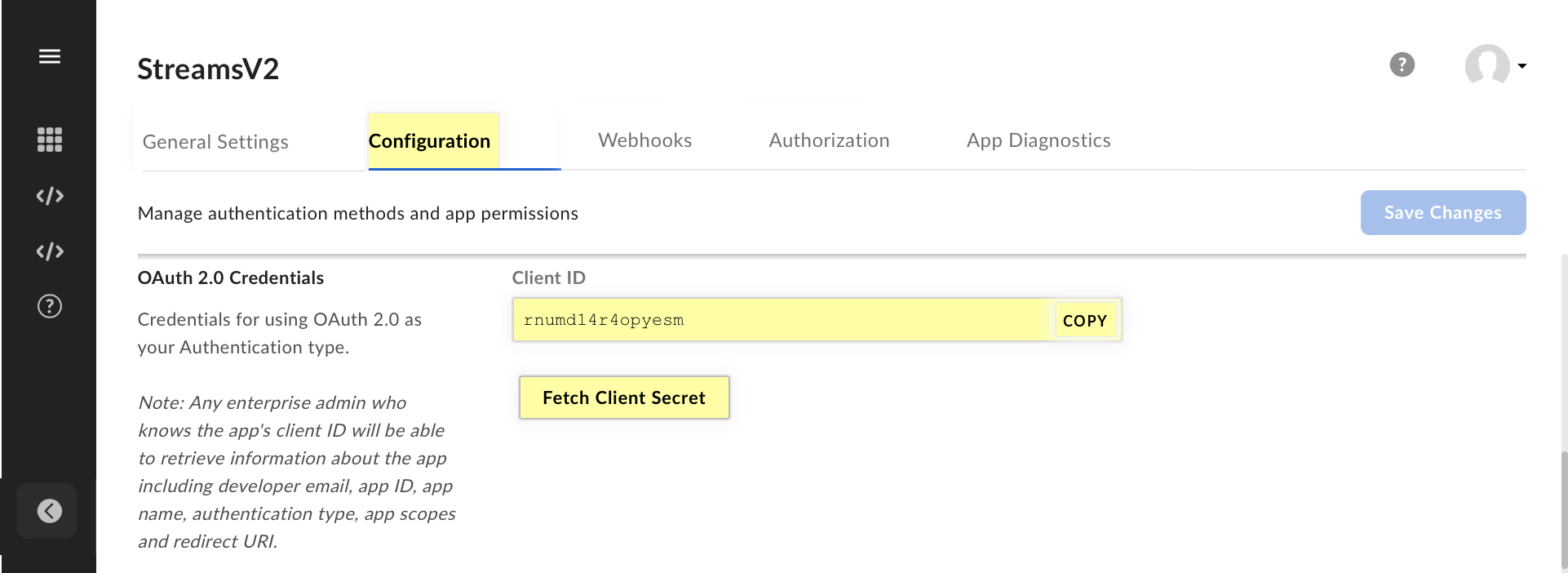

Go to the Configuration tab
Under the section named OAuth 2.0 Credentials, click Fetch Client Secret
Copy and save your Client ID
Copy and save your Client Secret

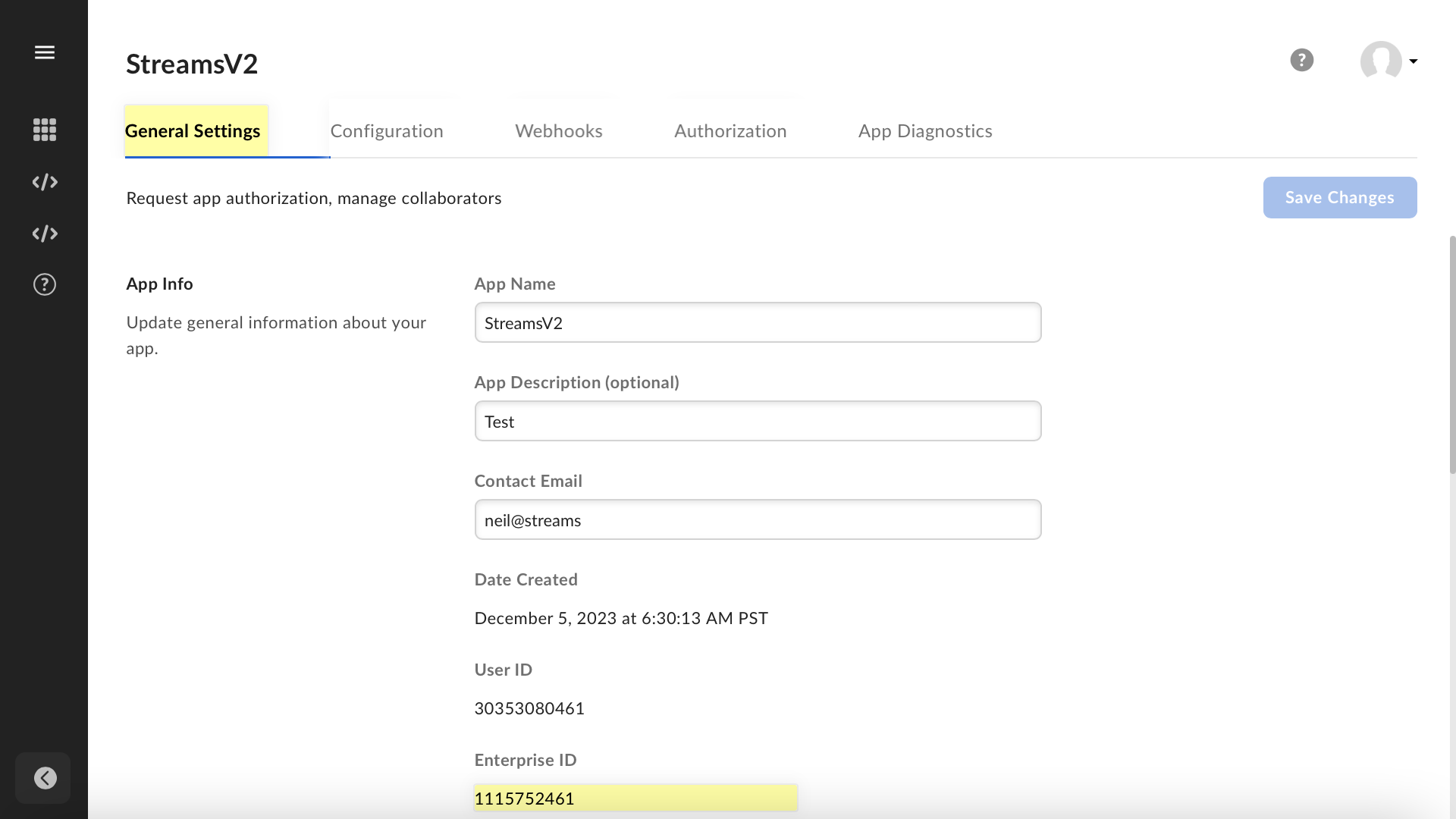

Go to the General Settings tab
Under the section App Info, copy and save your Enterprise ID

Log into Salesforce using a second browser tab.

Update your Box Named Credential:

Navigate to Setup > Security > Named Credentials
Click into https_api_box_com, then Edit
- Username: client_id (paste your Client ID from Box)
- Password: client_secret (also paste your Client Secret from Box)
Save your changes

Update your Script with your Enterprise ID:

Go to the Streams app > Integrations tab
Find your flow and click Open in Builder
Edit the Streamscript action with your Enterprise ID
Save the updated flow under a new version, then click Activate

# Streamscript

# Read the Box webhook
$enterpriseId = 'YOUR-ENTERPRISE-ID-HERE'

Return to your Box workspace.

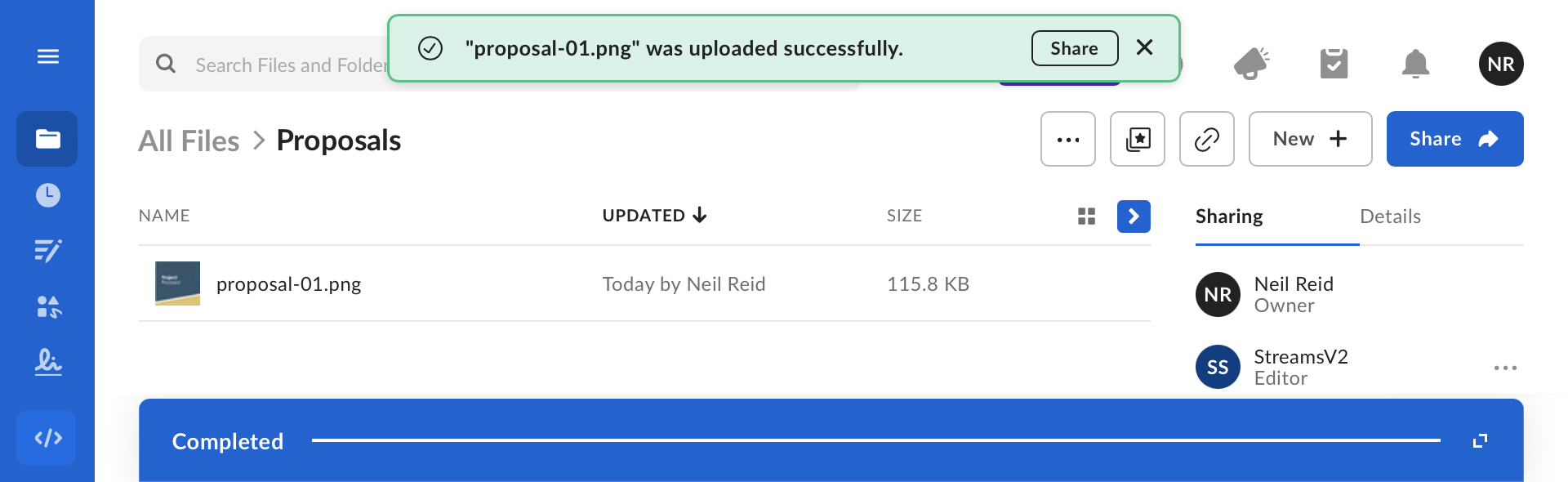

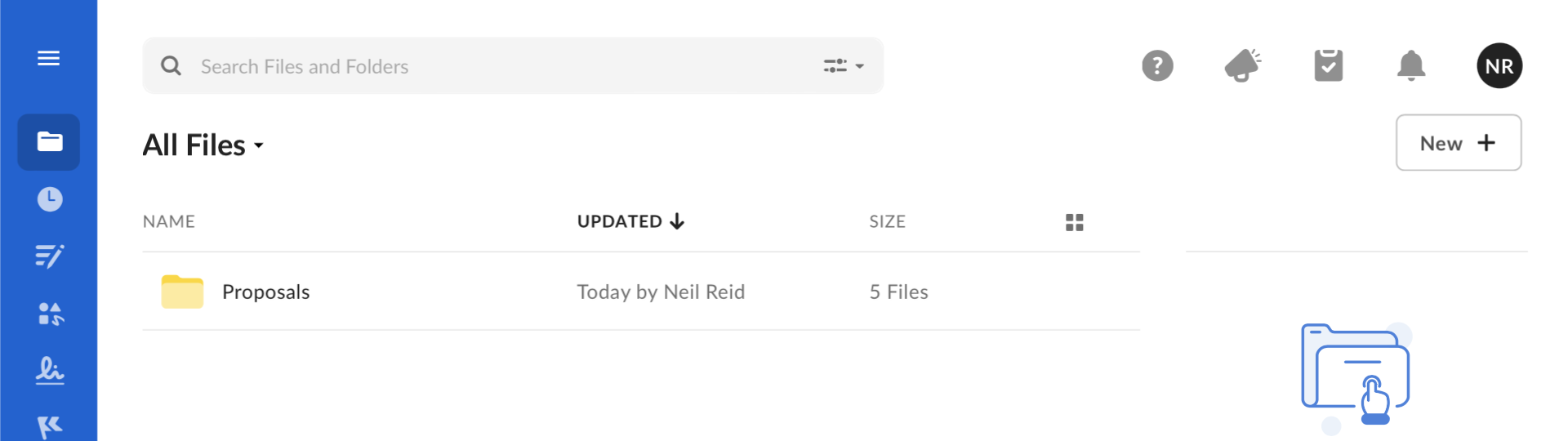

From the blue navigation menu, click Files then the Proposals folder. Drag and drop a test file into the folder to upload it.

Return to Salesforce.

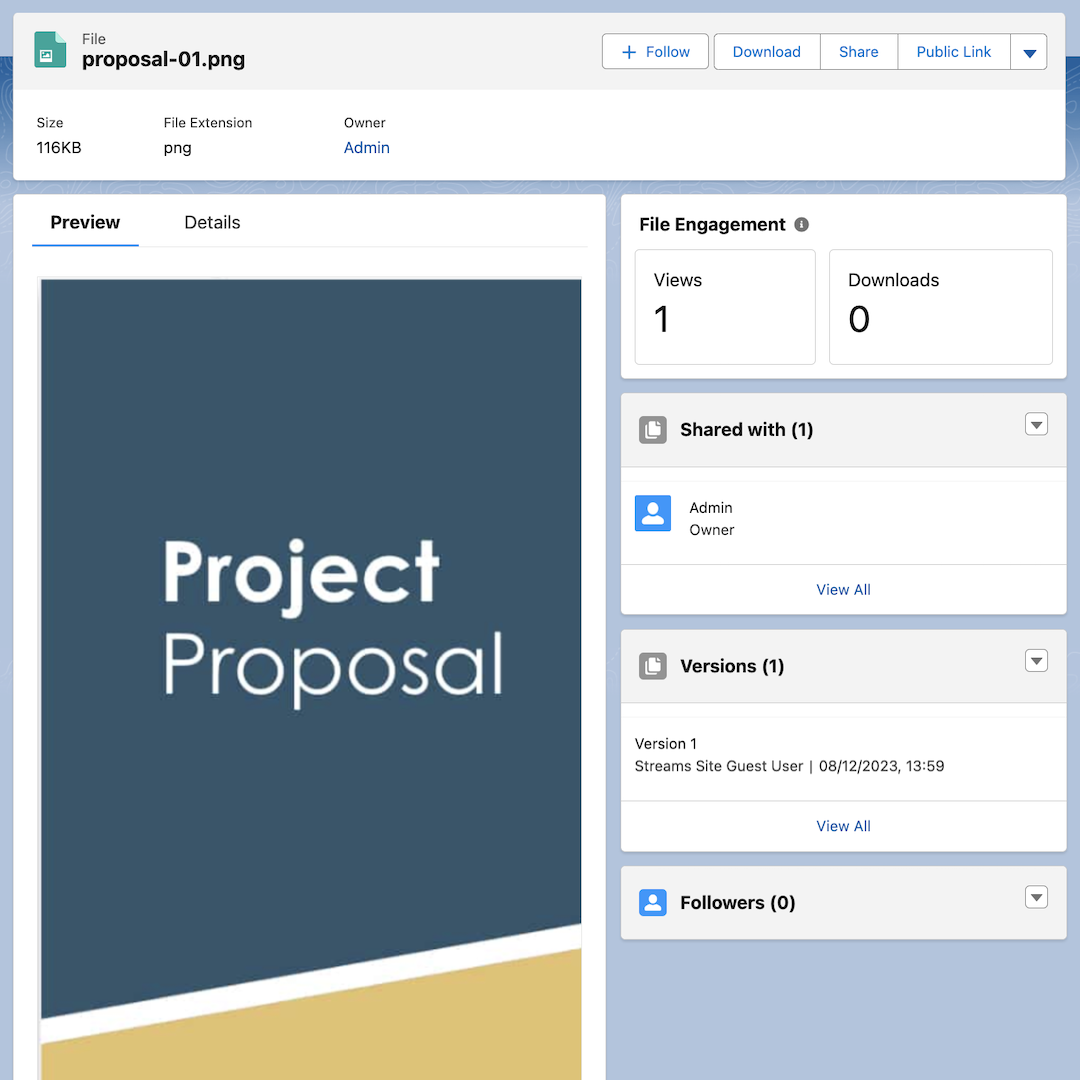

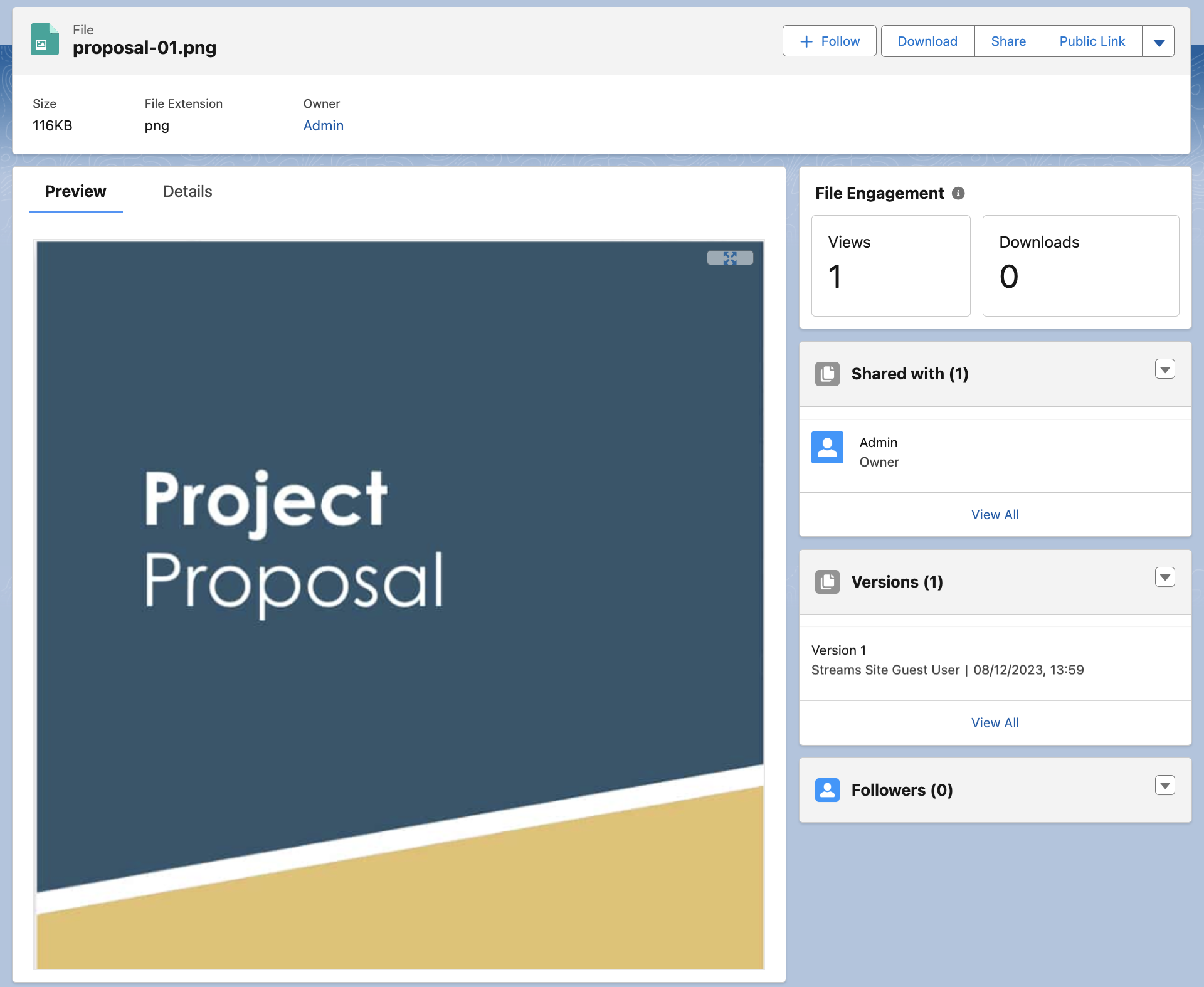

Go to the Files tab. You will find a copy of the file that was uploaded to Box.

The recipe is complete! You now have a realtime integration, it automatically syncs files from Box into Salesforce. It works without user interaction and needs no periodic token refresh.
