Salesforce/Box V1 Webhooks

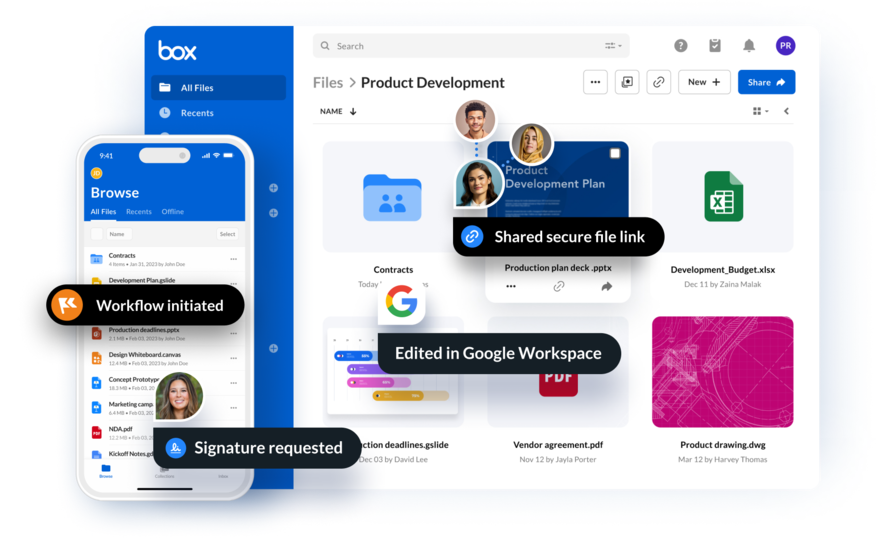

Box is a cloud-based file management service that offers collaboration for businesses and individuals. This recipe shows how to send real-time Box folder notifications into Salesforce using Streamscript and Box V1 Webhooks. (Looking for Box V2 Webhooks? V2 recipe »)

This integration uses three steps:

Step 1 - Create a webhook receiver in Salesforce
Step 2 - Configure Box to send file events with V1 Webhooks
Step 3 - Test the integration with a file upload

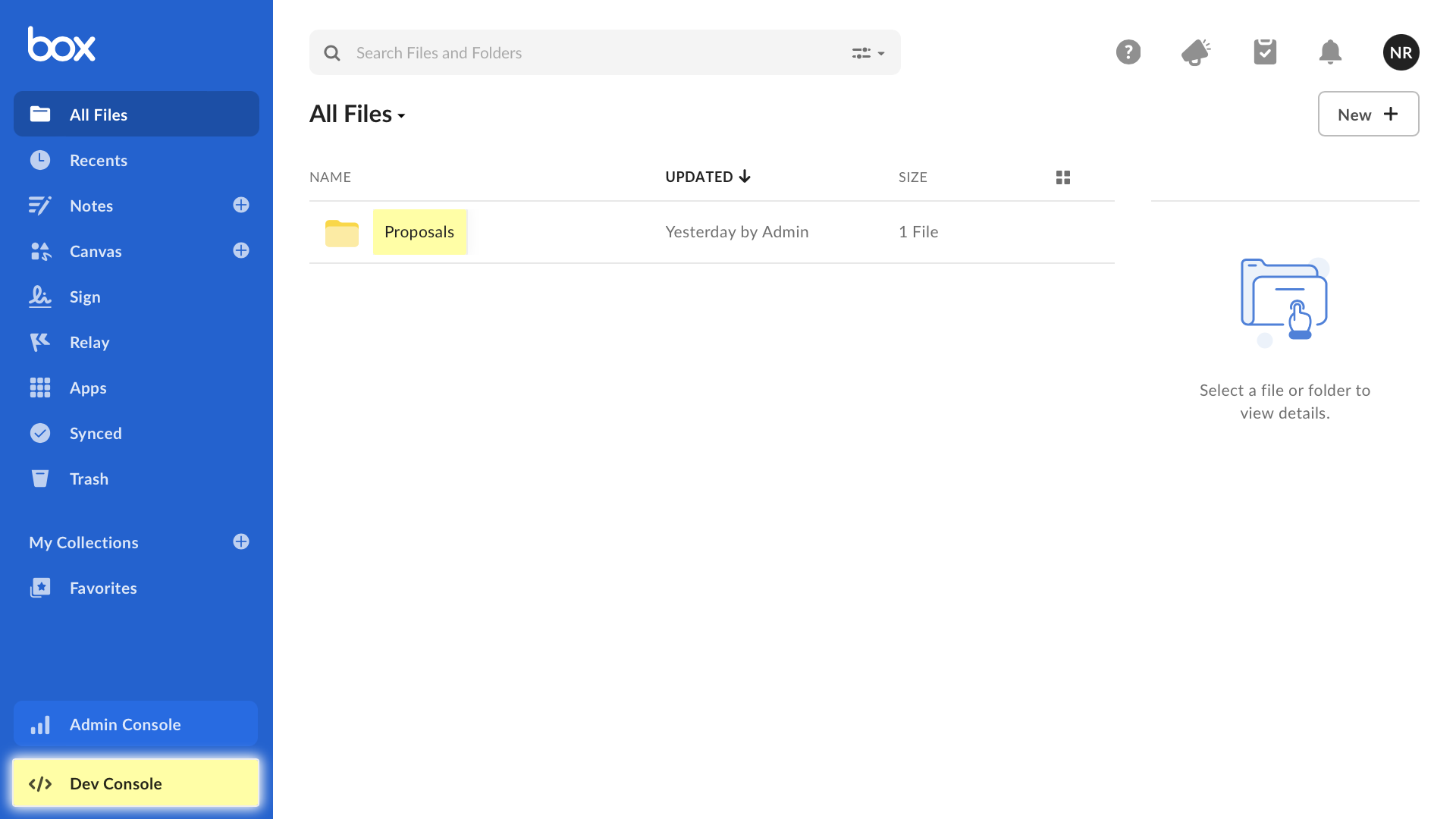

Follow this recipe by creating a 'Proposals' folder in the Box app, then open the Dev Console to access apps and webhooks. Webhooks are included in all Box Enterprise plans.

Step 1 - Create a webhook receiver in Salesforce

Log into Salesforce and prepare a Flow to handle the webhooks.

Follow the site setup video if you don't already have a Site configured.
Go to the Streams app > Integrations tab > click New Webhook Flow
Add a Streamscript action, with Name: Streamscript
Paste in below script then click Done

# Streamscript to read the Box callback parameters
$file = $Webhook.requestParams.item_name
$type = $Webhook.requestParams.event_type
$name = $Webhook.requestParams.from_user_name

# Secure the endpoint with a token of your choosing
if ($Webhook.requestParams.token != 'ABC123') {throw 'Bad Token'}

# Prepare Task
$Task = New-Task
$Task.Subject = `Box activity: $type`
$Task.Description = `User $name interacted with: $file`
return $Task

Add a flow element to save the Task.

Add a Create Records element, with Name: Save Task
Set Create a Record from These Values to the Streamscript > record output

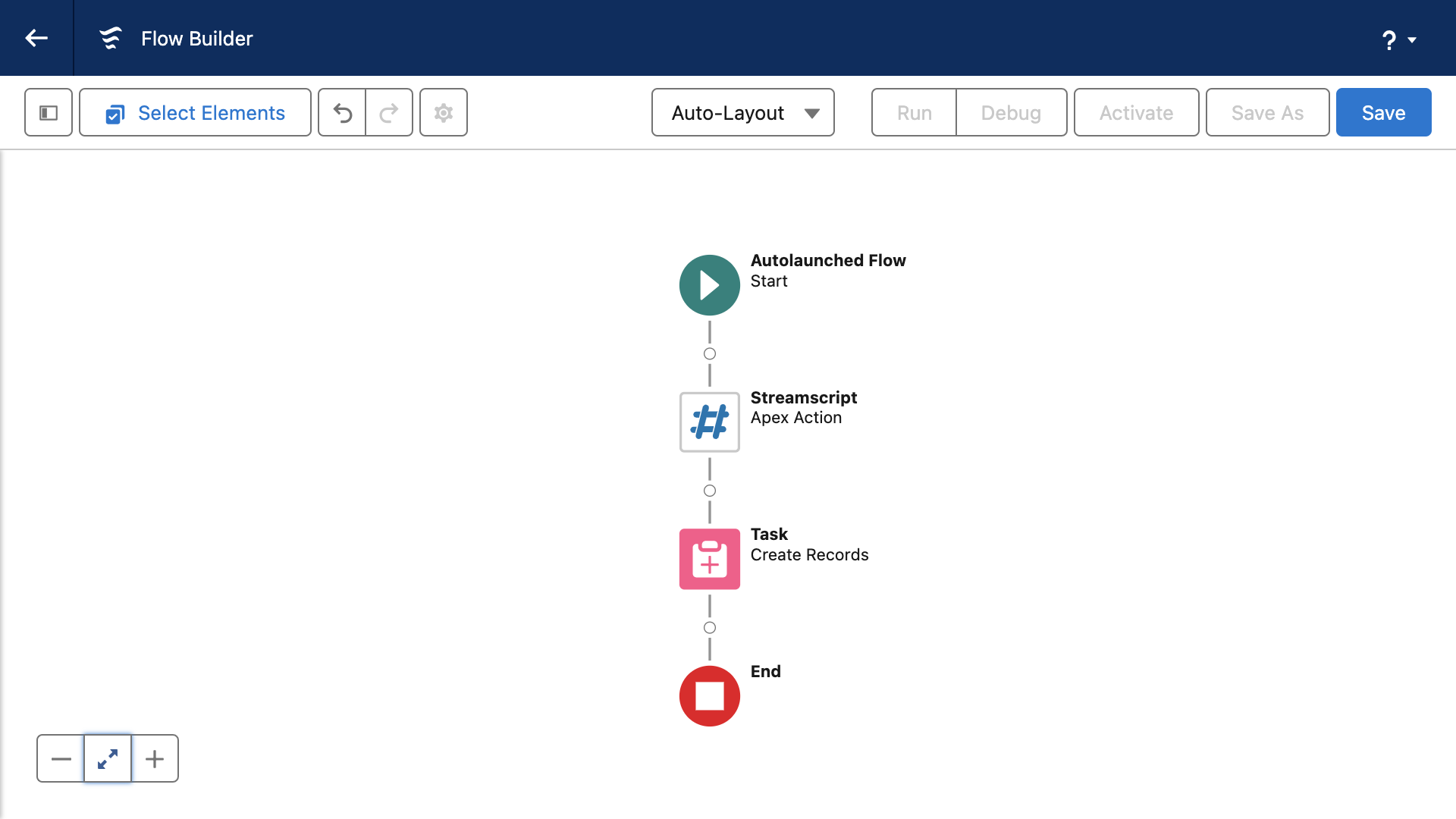

Click Done. Here is how the flow looks.

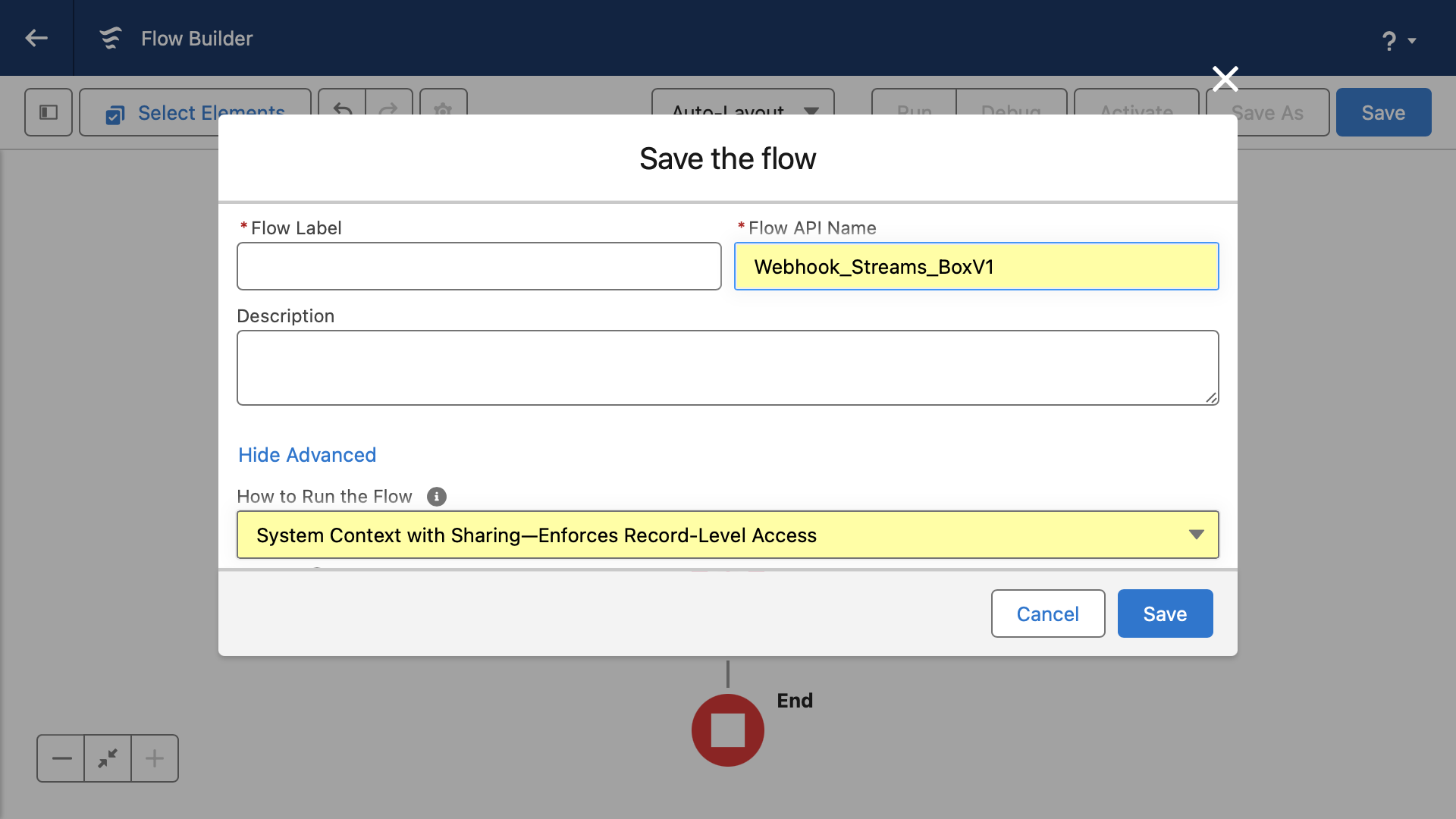

Save the Flow:

Use this specific API Name: Webhook_Streams_BoxV1
Show Advanced > How to Run the Flow: choose System Context With Sharing
(This flow property ensures the Site Guest User can insert the task record)

Notice how the API Name of the Webhook Flow consists of three parts. This is a
convention and it always has the format: Webhook _ Site Name _ URL Suffix

Click Activate

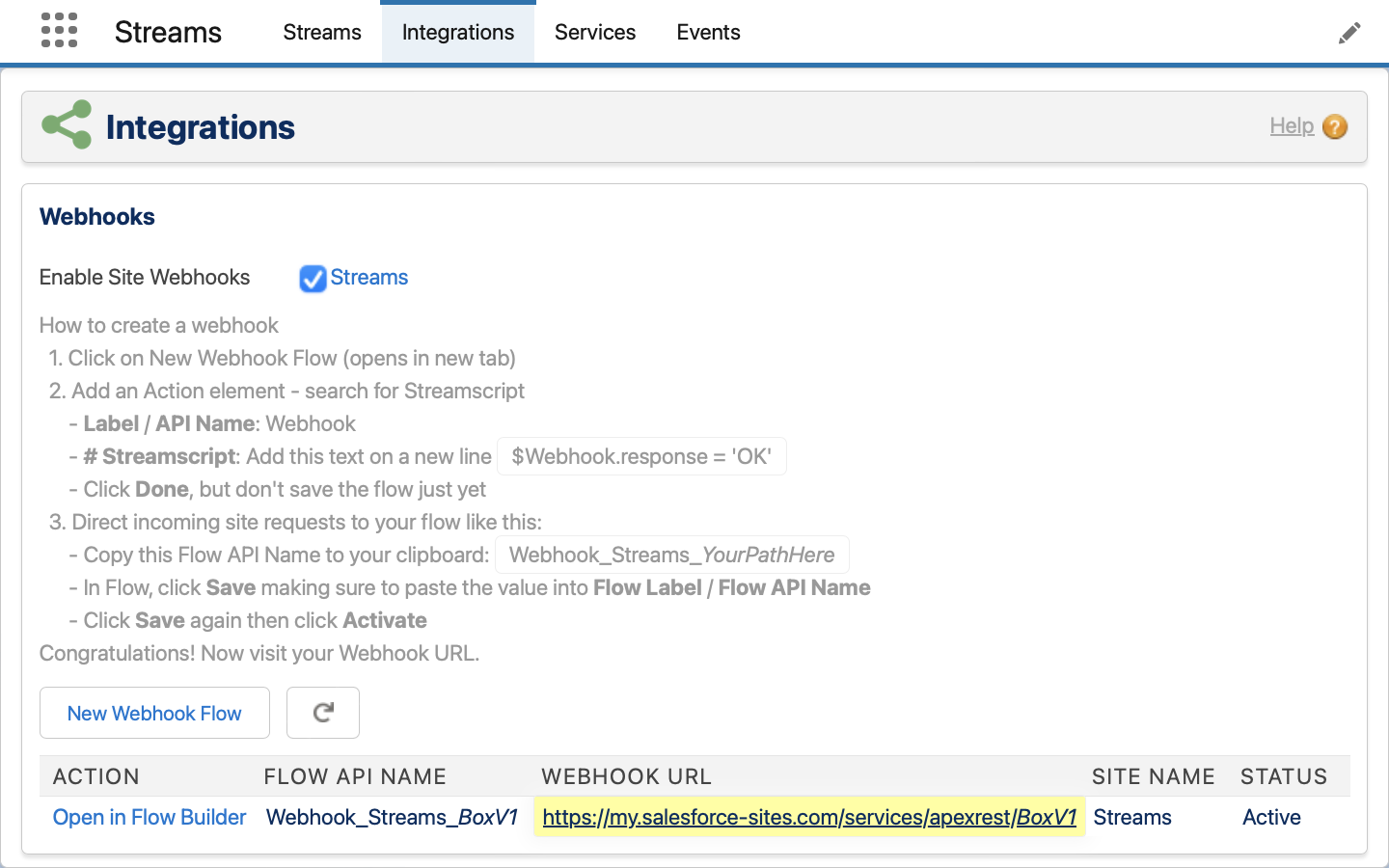

Go to the Streams app > Integrations tab
Find the Webhook URL and then Copy it to the clipboard. It's ready for Box.

Step 2 - Configure Box to send file events with V1 Webhooks

Log into Box > Dev Console > My Apps:

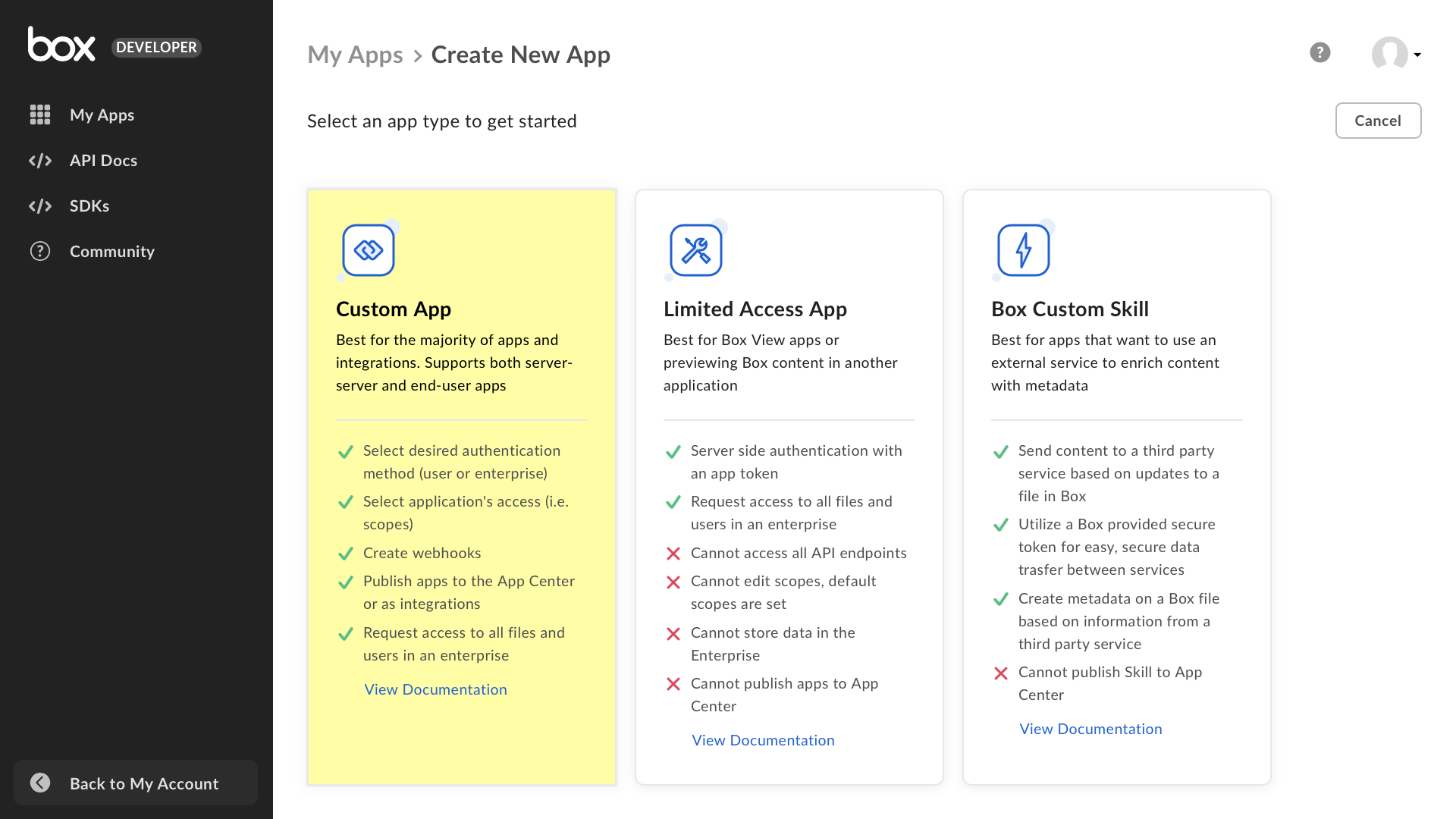

Click Create New App
App Type: Custom App

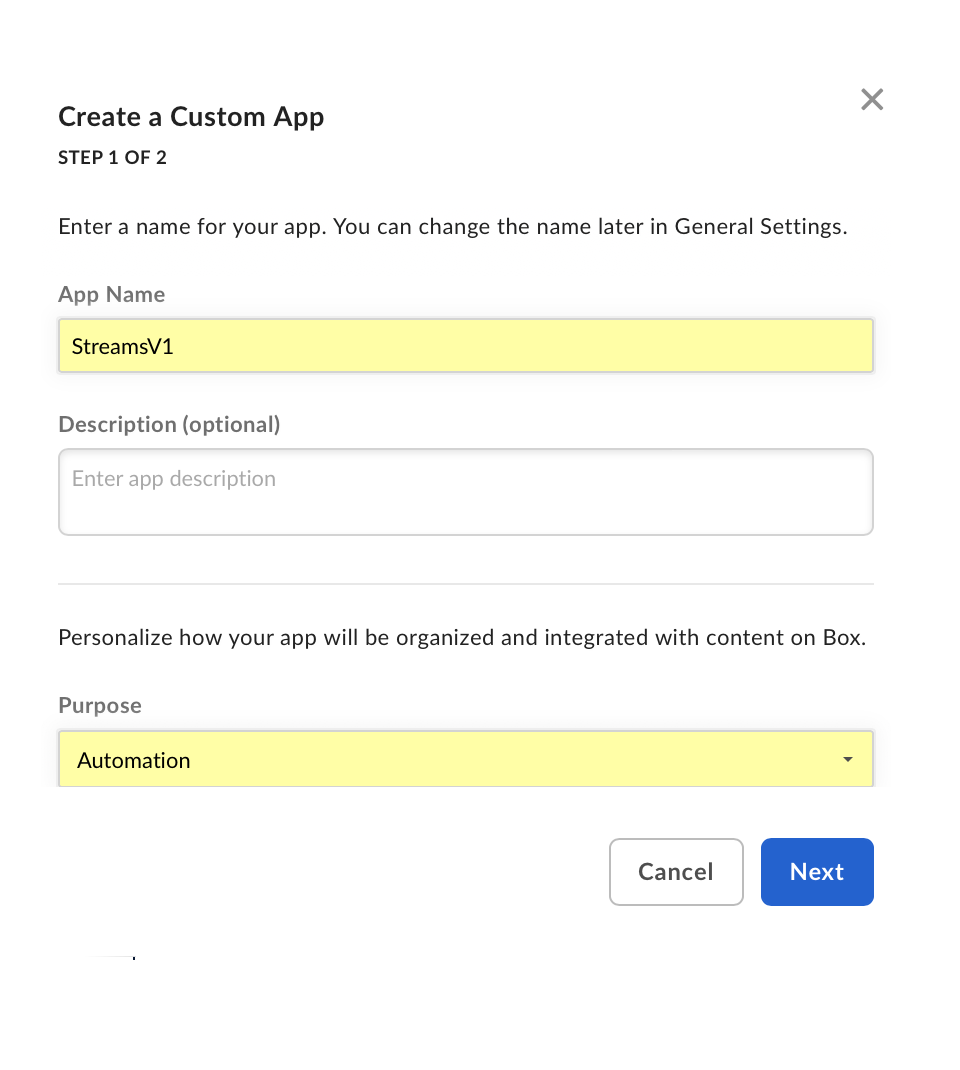

Carefully choose the app settings:

App Name: StreamsV1
Purpose: Automation

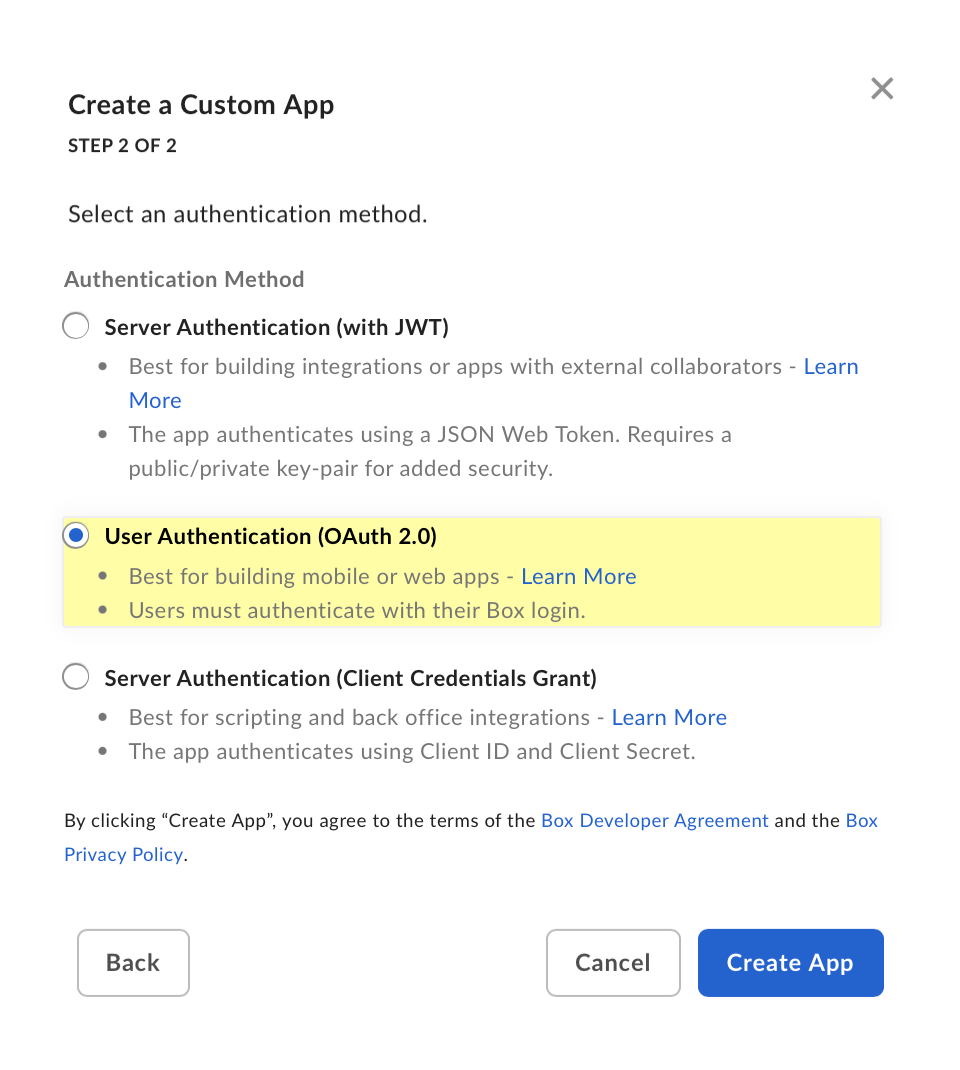

Authentication Method: User Authentication (OAuth 2.0) - this setting enables V1 Webhooks, having sessions that last beyond 60 minutes without expiring.

Now configure the Box webhook.

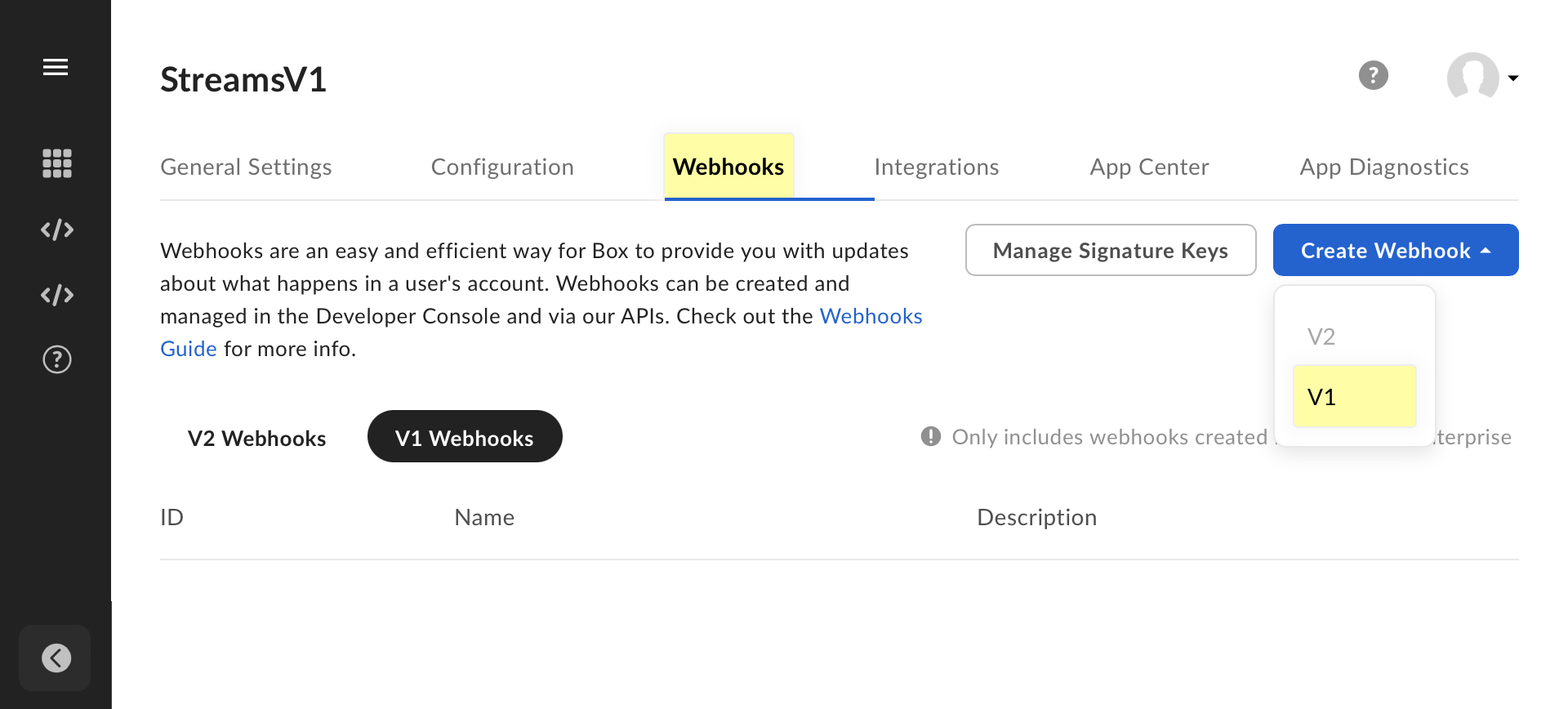

In your app, go to the Webhooks tab
From the Create Webhook dropdown, select V1

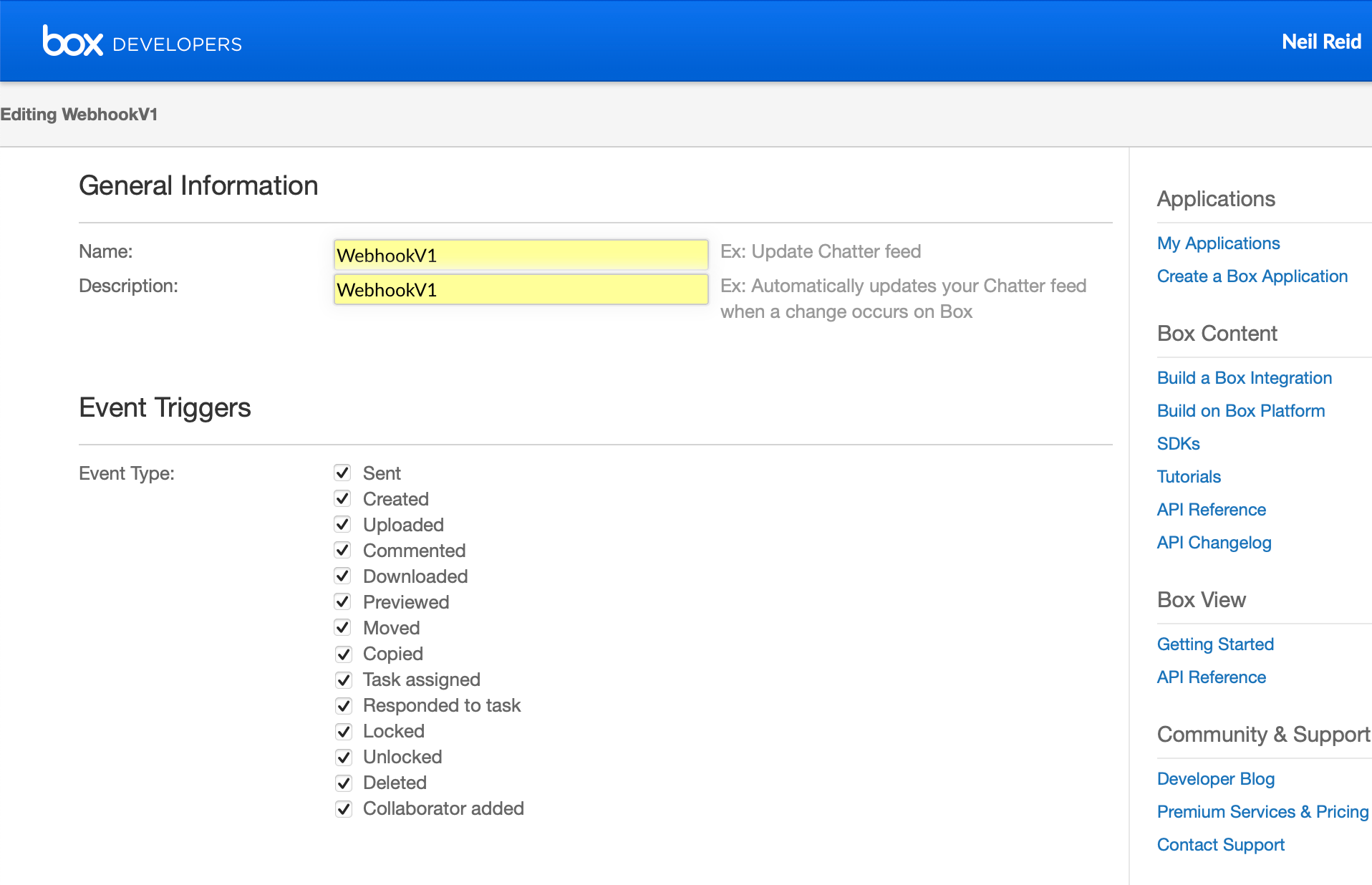

General Information

Name: WebhookV1
Description: WebhookV1
Event Type: Select all the event type checkboxes

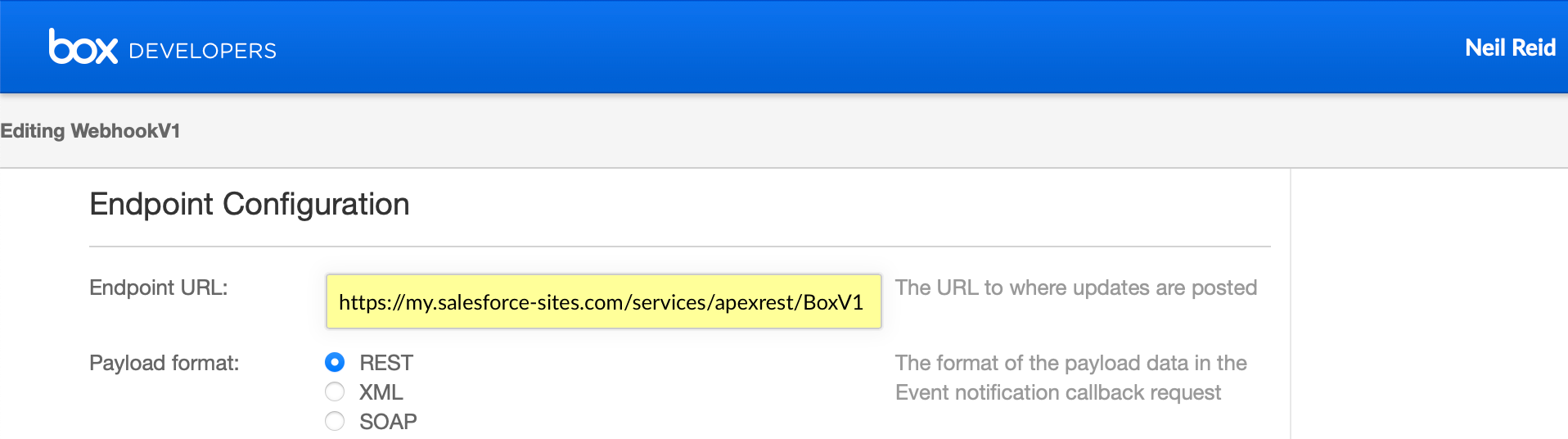

Endpoint Configuration

Endpoint URL: Paste the Webhook URL from the clipboard in Step 1
Payload Format: REST

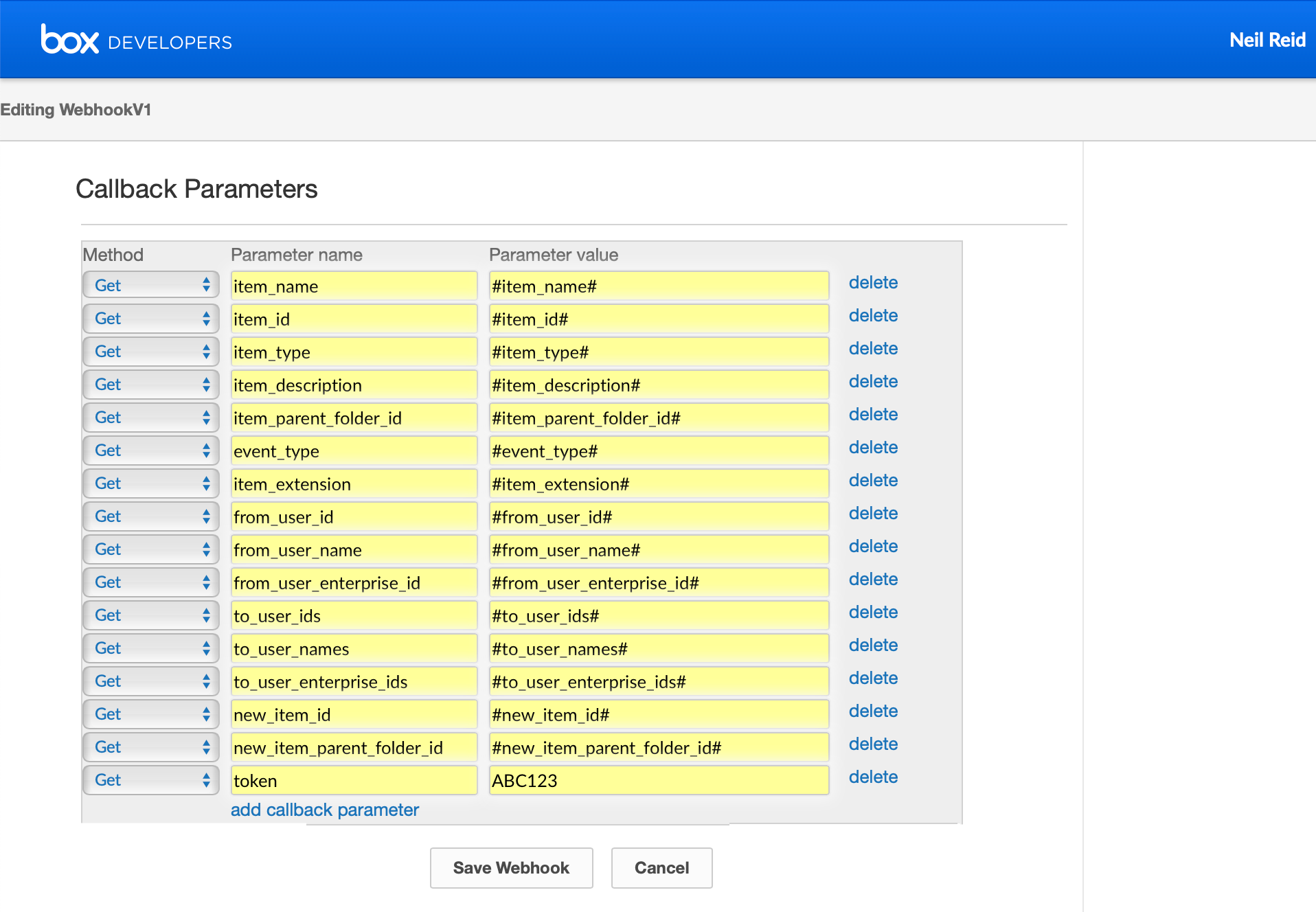

Callback Parameters are keys and values contained in the webhook payload. Include all of them so that Salesforce receives the full event detail. For each row, click Add callback parameter:

Method: GET
Parameter name: item_name
Parameter value: #item_name# (note the hash # symbols, and avoid accidental spaces)

Add one last parameter - a hard coded value containing a secure token of your own choosing. This is used by the webhook endpoint to verify each request came from you.

Click the Save Webhook button.
It will say The event notification has been successfully saved.
Click Cancel to return to the App.

Finally, install your app in your Box account using the preview process.
This option keeps the app private and does not require approval from Box.

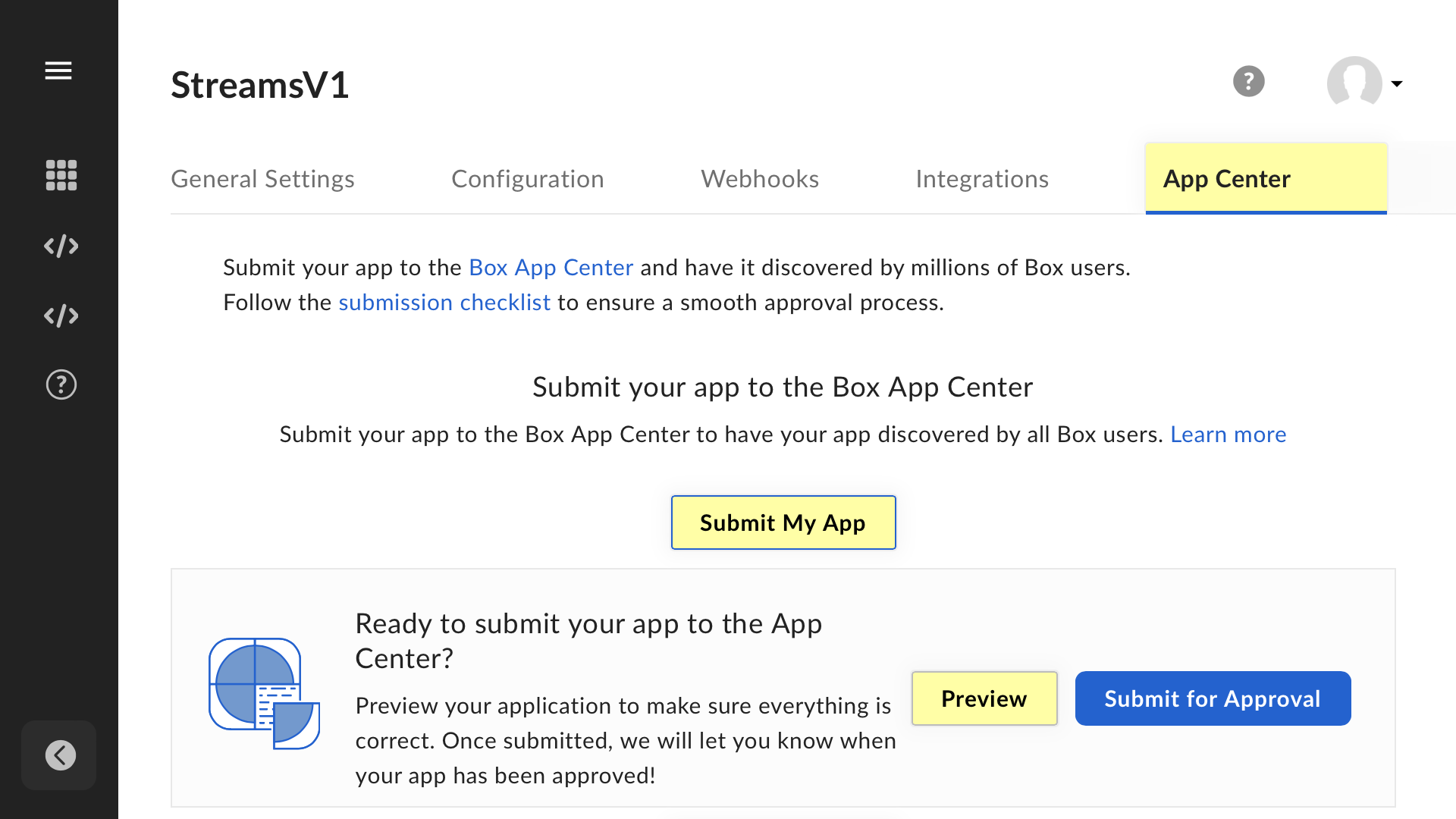

Go to the App Center tab
To reveal the Preview button, click Submit My App
At the review screen, scroll down and click Preview - this does not submit the app.

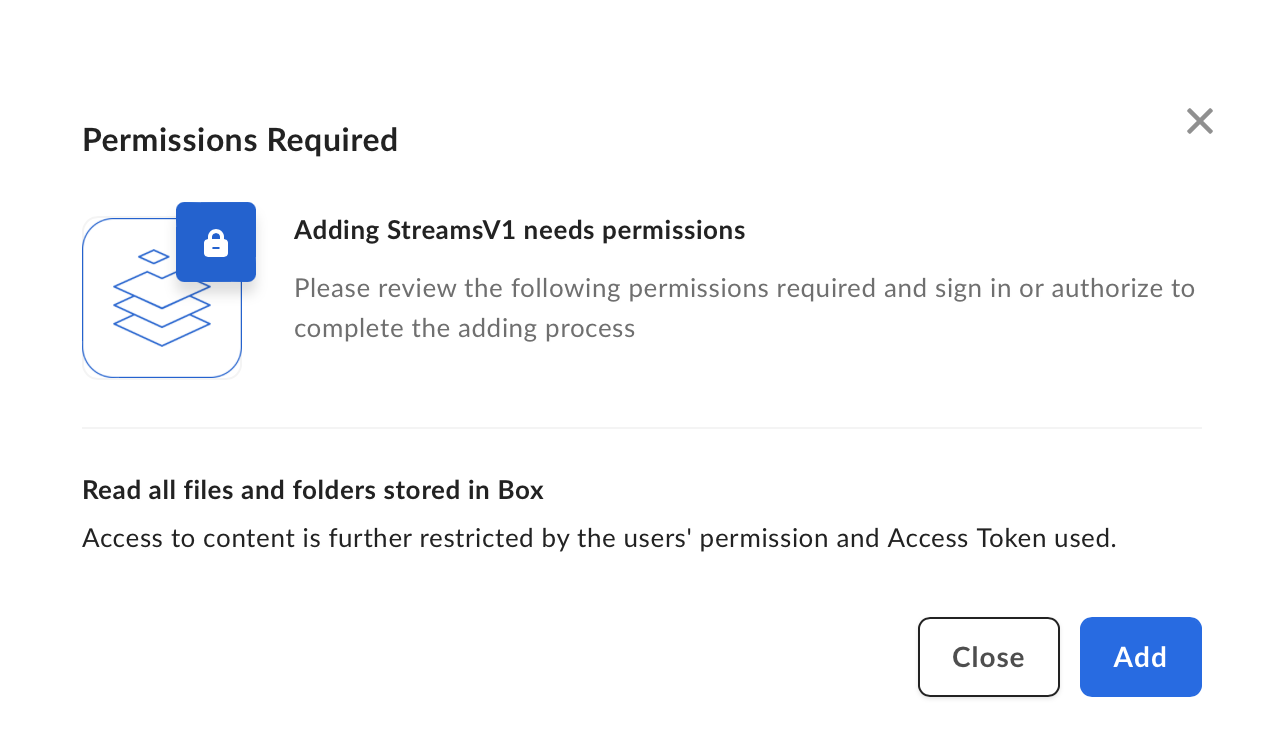

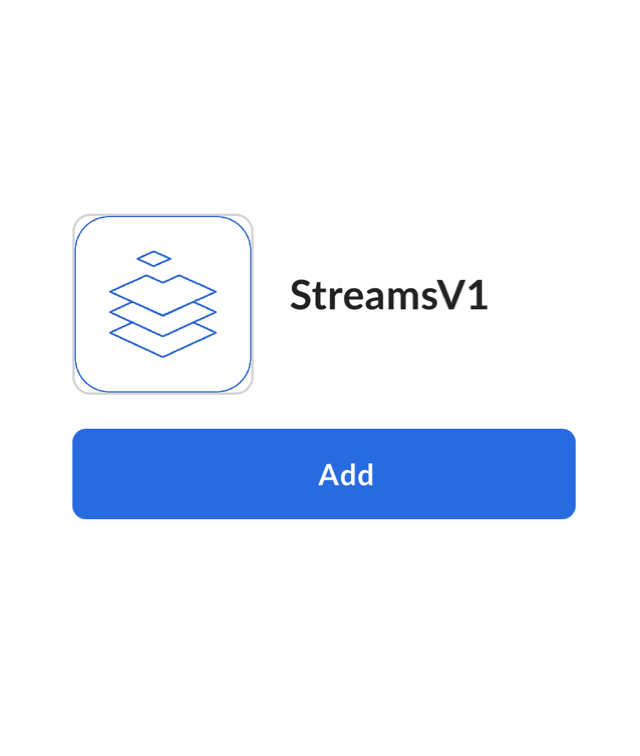

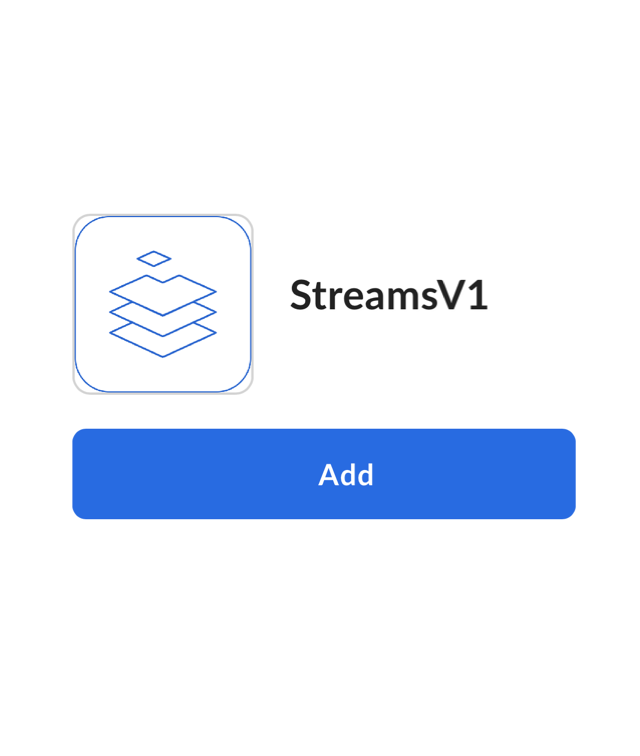

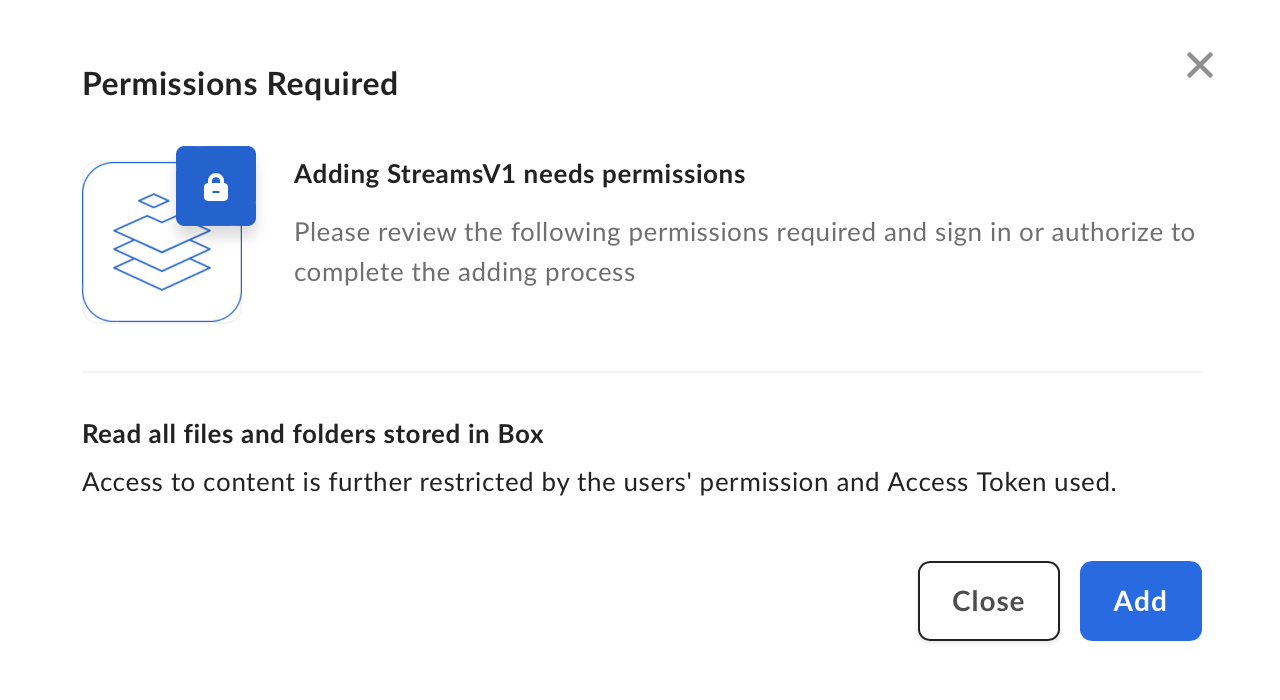

It navigates you directly to the app awaiting install in your Box environment. Click Add.

Step 3 - Test the integration with a file upload

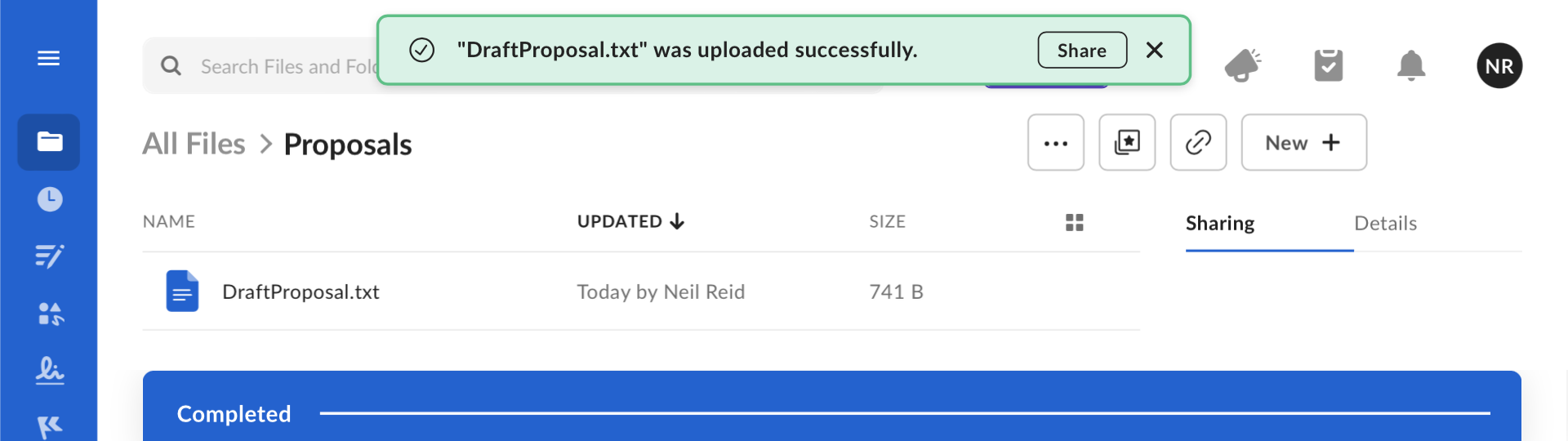

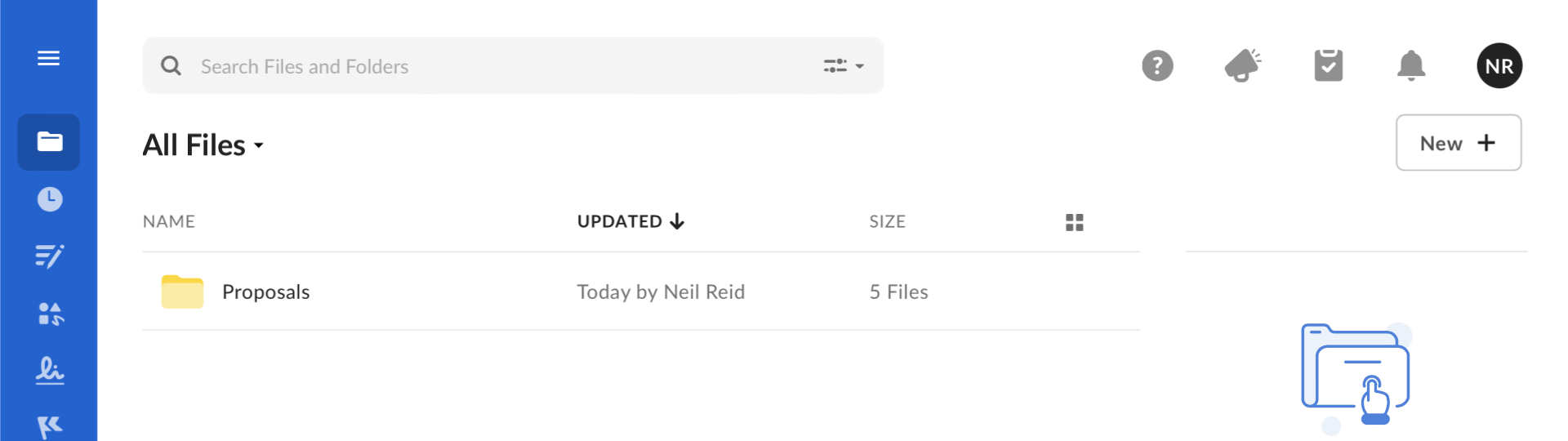

Log into your Box workspace. From the blue navigation menu, click Files then the Proposals folder. Drag and drop a test file into the folder to upload it.

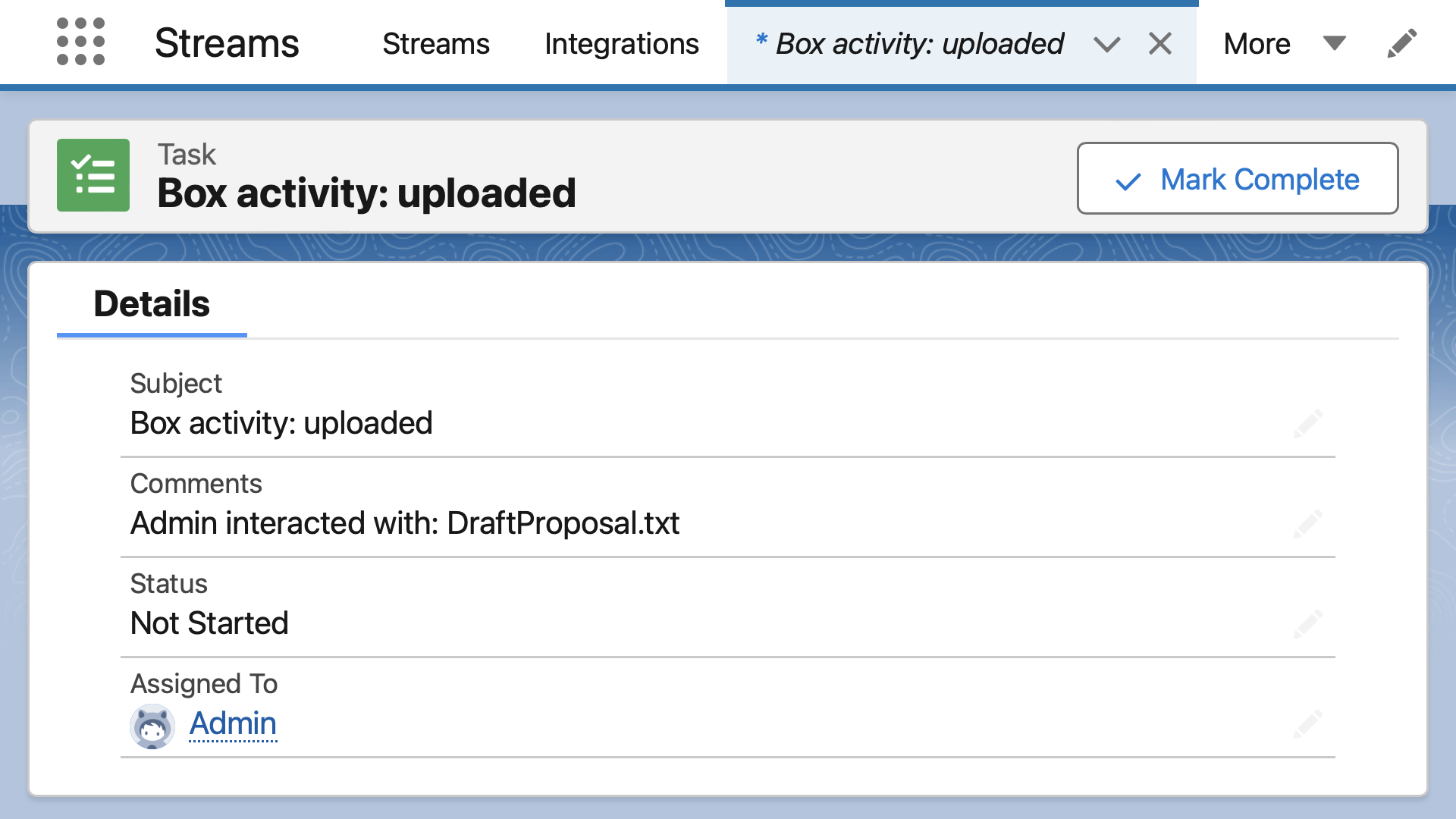

Log into Salesforce. Go to the Tasks tab and open the list view. Here is the upload notification!

This simple Box/Salesforce integration needs no OAuth implementation nor token refresh logic. All file and folder events are sent from Box into Salesforce via the webhook.

Appendix - Example Data

HTTP Headers for Box V1 Webhooks

User-Agent: Box-Skills-Client/0.1
Box-Delivery-Timestamp: 2023-12-05T10:56:53-08:00
Surrogate-Capability: prod-c1-a-web-proxy-3x0m="Surrogate/1.0 ESI/1.0"

Callback Parameters for Box V1 Webhooks

event_type: uploaded
item_id: 1380432606482
item_type: file
item_extension: png
item_description: Proposal
item_name: Screenshot.png
item_parent_folder_id: 0
from_user_id: 30353080461
from_user_name: Box Admin
from_user_enterprise_id: 1115752461
to_user_ids: ["30353080461"]
to_user_names: ["Neil Reid"]
to_user_enterprise_ids: ["1115752461"]
new_item_id: 1380452238155 (present in 'copied' events)
new_item_parent_folder_id: 237583118146 (present in 'copied' events)

$Webhook request and response properties

$Webhook.request # null
$Webhook.requestMethod # GET
$Webhook.requestIp # 74.112.186.52
$Webhook.requestUri # /Streams/BoxV1
$Webhook.requestPath # /services/apexrest/Streams/*
$Webhook.requestParams # {item_name: "Screenshot.png"...}
$Webhook.requestHeaders {X-Salesforce-SIP: "74.112.186.52"...}
$Webhook.responseStatus # 200
$Webhook.responseHeaders # {...}
$Webhook.response # blank
